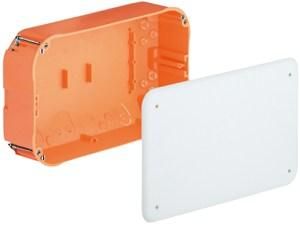

Kaiser 9192-91 240x140x72mm orange hollow wall junction box, 9192-91

In stock

SKU: 494864

Price on request

€46.93

€0

Overview

Installation type: Basic installation, Application area: For cable connections, Length: 240 mm, Depth: 72 mm, Milling hole Ø: 4 x 68 mm, Width: 140 mm

Property	Value
With screws:	yes
Depth:	72 mm
Length:	238 mm
Width:	140 mm
Material:	Plastic
Color:	white
Sealable:	no
Halogen-free:	no
Protection class (IP):	IP3X
Shape:	round
Diameter:	68 mm
Mounting type:	Hollow wall
Version:	Single
Design:	Junction box/case
With nail tabs:	no
Windproof:	no
Insertion from the rear:	yes
Can be coupled:	no
Housing feedthrough through sealing membrane:	no
Cover fastening:	screwed
Functional integrity:	without
Fastening of the devices:	screws
For pipe diameter:	20 mm
Pipe locking:	no
Equipment:	without
Light hook attachment:	no
Socket:	without
With shielding:	no
Housing feedthrough through knockout opening:	yes
With rotating ring:	no
Special application:	other
Housing feedthrough through pipe socket:	no
Housing feedthrough through stepped membrane:	no
Pipe locking optional:	no
Cover design:	Blind cover
Transparent cover:	no
