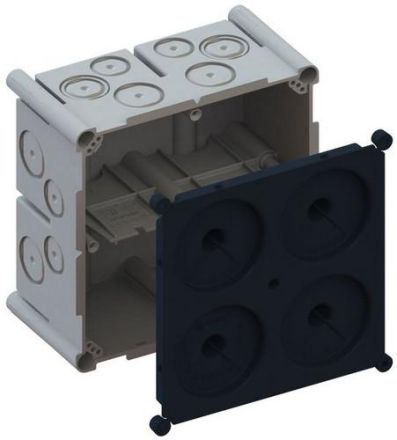

Kaiser 9902.24 Varifix 2x2 with protective cover concrete construction inlet box

In stock

SKU: 707960

Price on request

€18.06

€0

Overview

9902.24 Varifix 2x2 with protective cover Concrete construction inlet box Manufacturer article number: 9902.24, Manufacturer article name: Varifix 2x2 with protective cover

Property	Value
With screws:	no
Depth:	70 mm
Length:	137 mm
Width:	137 mm
Material:	Plastic
Color:	gray
Sealable:	no
Halogen-free:	yes
Shape:	square
Mounting type:	flush-mounted
Number of entries:	20
Design:	4-way
Design:	Device box
With nail tabs:	yes
Windproof:	no
Insertion from the rear:	no
Can be coupled:	no
Housing feed-through through sealing membrane:	no
Cover fastening:	snaps on
Functional integrity:	without
For number of device inserts:	4
Inner depth:	60 mm
Surface:	untreated
Fastening of the devices:	screws
For pipe diameters:	20/25 mm
Pipe locking:	yes
Equipment:	without
Socket:	without
With shielding:	no
Housing feedthrough through knockout opening:	yes
With rotating ring:	no
Housing feedthrough through pipe socket:	no
Housing feedthrough through stepped membrane:	no
Pipe locking optional:	no
Cover design:	Protection cover
Transparent cover:	no
