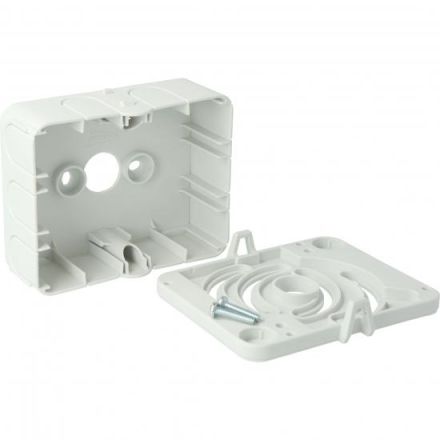

Kaiser AT2264 Pluggable Base AK2 8-14 Installation junction box

In stock

SKU: 769328

Price on request

€4.66

€0

Overview

AT2264 Pluggable Base AK2 8-14 Installation d. Junction box manufacturer article number: AT2264, manufacturer article name: Pluggable base AK2 8-14 installation depth.

Property	Value
Width:	95,000 mm
Length:	120,000 mm
Depth:	50,000 mm
Color:	gray
Protection class (IP):	IP40
Equipment:	Mounting plate
Mounting type:	on central box
Material:	plastic
Cover fastening:	snap-on
Can be arranged in series:	no
Shape:	rectangular
Type of housing feedthrough:	pre-punched
Halogen-free:	yes
For Ex zone gas:	without
Functional integrity:	without
Explosion-tested version:	no
Supplied with casting compound:	no
Potable:	no
For Ex zone dust:	without
Installation under water:	no
Transparent cover:	no
Installation in the ground:	no
Number of entries:	10,000
Surface protection:	untreated
For pipe diameters:	16/19 mm
Max. Conductor cross-section:	6,000 mm²
Sealable:	no
With shielding:	no
Rated insulation voltage Ui:	690,000 V
Introduction from the rear:	yes
Weatherproof:	no
Cover design:	without
Operating temperature:	-40,000 to 70,000 °C
