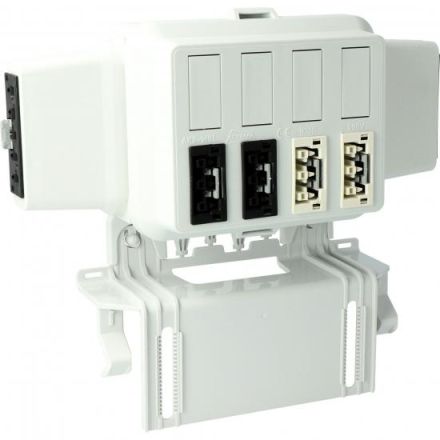

Kaiser AT4743 Pluggable AK2 WINSTA I:5 O:each 2x3 L1/ L2 housing

In stock

SKU: 769304

Price on request

€58.03

€0

Overview

AT4743 Pluggable AK2 WINSTA I:5 O:each 2x3 L1/ L2 housing Manufacturer article number: AT4743, Manufacturer article name: Pluggable AK2 WINSTA I:5 O:each 2x3 L1/ L2

Property	Value
Width:	95,000 mm
Length:	215,000 mm
Depth:	70,000 mm
Color:	gray
Protection class (IP):	IP20
Equipment:	mounting plate
Mounting type:	on cable tray
Material:	plastic
Cover fastening:	snap-on
Can be arranged in series:	no
Shape:	rectangular
Type of housing feedthrough:	pre-punched
Halogen-free:	yes
For Ex-Zone Gas:	without
Functional integrity:	without
Explosion-tested version:	no
Supplied with casting compound:	no
Potable:	no
For Ex-Zone Dust:	without
Installation under water:	no
Transparent cover:	no
Installation in Soil:	no
Number of entries:	6,000
Surface protection:	untreated
Max. Conductor cross-section:	4,000 mm²
Sealable:	no
With shielding:	no
Rated insulation voltage Ui:	400,000 V
Insertion from the rear:	no
Weatherproof:	no
Cover design:	suitable for snap-in connection technology (manufacturer-specific)
Operating temperature:	-40,000 to 70,000 °C
