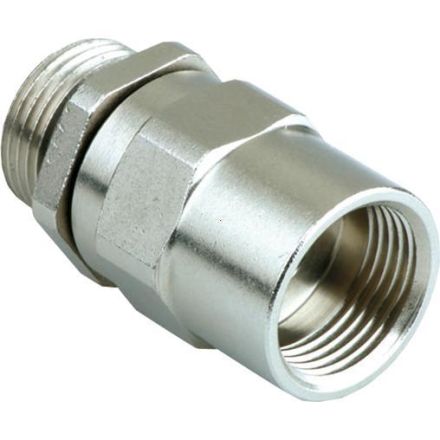

Kaiser M32x1.5 copper hollow braid 12.0-20.0mm combo EMC screw connection, 1165.84.32.34

Kaiser M32x1.5 copper hollow braid 12.0-20.0mm combo EMC screw connection, 1165.84.32.34

In stock

SKU: 497710

Price on request

€48.71

€0

Into a basketIn the basketGo

Overview

Combination EMC screw connection Ms M32x1.5 for copper hollow braid 12.0-20.0 mm

Property	Value
Wrench size:	36 mm
Thread pitch:	1.5 mm
Nominal thread size metric/PG:	32
Suitable for cable diameters:	12.0 to 20.0 mm
Protection class (IP):	IP68
Operating temperature:	-40 to 100 °C
Halogen-free:	yes
Thread length:	13 mm
Thread type:	metric
Design:	straight
Material:	metal
With strain relief:	no
Surface:	nickel-plated
Type of Seal:	Sealing ring
Impact resistant:	yes
Bending protection:	no
Material quality:	Brass
Fiberglass reinforced:	no
With lock nut:	no
Multiple sealing insert:	no
Flat cable gland:	no
Dividable Screw connection:	no
Explosion-tested version:	no
For Ex-Zone Gas:	without
For Ex-Zone Dust:	without

Characteristics

Impact resistantYes

Explosion-tested versionNo

Nominal thread size metric/PG32

Fiberglass reinforcedNo

Suitable for cable diameter12.0 to 20.0mm

Wrench size36 mm

HABM32x1.5 copper hollow braid 12.0-20.0mm

Manufacturer

HAN1165.84.32.34

GTIN7611614219622

VersionStraight

Operating temperature-40 to 100 °C

Thread typeMetric

Thread length13 mm

Thread1.5 mm

Halogen freeYes

With strain reliefNo

SurfaceNickel-plated

IP protection)IP68

MaterialMetal

Material qualityBrass

Kaiser M32x1.5 copper hollow braid 12.0-20.0mm combo EMC screw connection, 1165.84.32.34

Kaiser M32x1.5 copper hollow braid 12.0-20.0mm combo EMC screw connection, 1165.84.32.34

Price on request

€48.71

€0

Into a basketIn the basketGo
