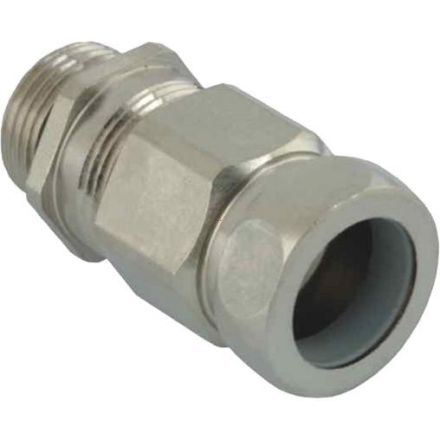

Kaiser Progress MS 30.5-35.0mm hose AD 45mm combination screw connection EMC Pg36, 1710.80.36.350.1

In stock
SKU: 497809
€72.29
Into a basketIn the basketGo

Overview

Operating temperature: -40°C / +100°C, clamping technology: compression technology, thread length: long, outside diameter: 10 mm, outside diameter: 14 mm, outside diameter: 17 mm, outside diameter: 19 mm, outside diameter: 21 mm, outside diameter: 27 mm, outside diameter: 36 mm, outside diameter: 45 mm, outside diameter: 56 mm

Property Value
Wrench size: 50 mm
Nominal thread size metric/PG: 36
Suitable for cable diameters: 30.5 to 35.0 mm
Protection class (IP): IP68
Operating temperature: -40 to 100 °C
Halogen-free: yes
Thread length: 15 mm
Thread type: PG
Design: straight
Material: metal
With strain relief: yes
Surface: nickel-plated
Type of seal: sealing ring
Impact-resistant: yes
Bending protection: no
Material quality: brass
Fiberglass reinforced: no
With lock nut: no
Multiple sealing inserts: no
Flat cable gland: no
Dividable gland: no
Explosion-tested version: no
For Ex-zone gas: without
For Ex-zone dust: without

Characteristics

Impact resistantYes
Explosion-tested versionNo
Nominal thread size metric/PG36
Fiberglass reinforcedNo
Suitable for cable diameter30.5 to 35.0mm
Wrench size50 mm
HABProgress MS 30.5-35.0mm hose OD 45mm
ManufacturerKaiser
HAN1710.80.36.350.1
GTIN7611614144405
VersionStraight
Operating temperature-40 to 100 °C
Thread typePG
Thread length15 mm
Halogen freeYes
With strain reliefYes
SurfaceNickel-plated
IP protection)IP68
MaterialMetal
Material qualityBrass
Kaiser Progress MS 30.5-35.0mm hose AD 45mm combination screw connection EMC Pg36, 1710.80.36.350.1
