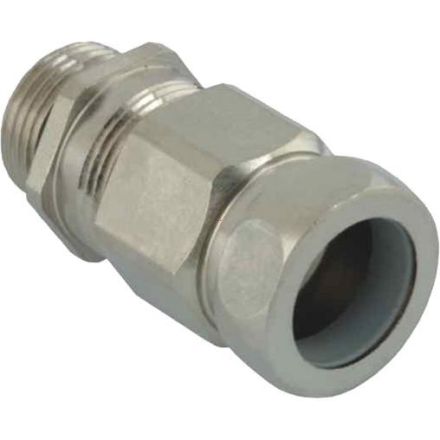

Kaiser Progress MS 33.0-37.0mm hose AD 45mm combination screw connection EMV M50, 1710.80.50.370.1

In stock
SKU: 497818
€73.54
Into a basketIn the basketGo

Overview

Operating temperature: -40°C / +100°C, clamping technology: compression technology, thread length: long, outside diameter: 10 mm, outside diameter: 14 mm, outside diameter: 17 mm, outside diameter: 19 mm, outside diameter: 21 mm, outside diameter: 27 mm, outside diameter: 36 mm, outside diameter: 45 mm, outside diameter: 56 mm

Property Value
Wrench size: 55 mm
Thread pitch: 1.5 mm
Nominal thread size metric/PG: 50
Suitable for cable diameters: 33.0 to 37.0 mm
Protection class (IP): IP68
Operating temperature: -40 to 100 °C
Halogen-free: yes
Thread length: 14 mm
Thread type: metric
Design: straight
Material: metal
With strain relief: yes
Surface: nickel-plated
Type of seal: sealing ring
Impact-resistant: yes
Bending protection: no
Material quality: brass
Fiberglass reinforced: no
With lock nut: no
Multiple sealing insert: no
Flat cable screw connection: no
Dividable screw connection: no
Explosion-tested version: no
For Ex-zone gas: without
For Ex-zone dust: without

Characteristics

Impact resistantYes
Explosion-tested versionNo
Nominal thread size metric/PG50
Fiberglass reinforcedNo
Suitable for cable diameter33.0 to 37.0mm
Wrench size55 mm
HABProgress MS 33.0-37.0mm hose OD 45mm
ManufacturerKaiser
HAN1710.80.50.370.1
GTIN7611614144801
VersionStraight
Operating temperature-40 to 100 °C
Thread typeMetric
Thread length14 mm
Thread1.5 mm
Halogen freeYes
With strain reliefYes
SurfaceNickel-plated
IP protection)IP68
MaterialMetal
Material qualityBrass
Kaiser Progress MS 33.0-37.0mm hose AD 45mm combination screw connection EMV M50, 1710.80.50.370.1
