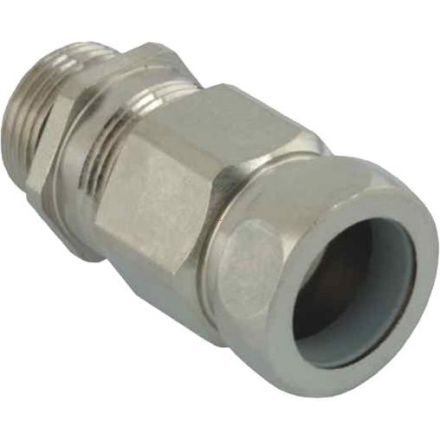

Kaiser Progress MS 4.5-6.0mm hose 1/4 combination screw connection EMV M12, 1710.80.12.060.2

In stock
SKU: 497780
€15.21
Into a basketIn the basketGo

Overview

Operating temperature: -40°C / +100°C, clamping technology: compression technology, thread length: long, outside diameter: 1/4 mm, outside diameter: 3/8 mm, outside diameter: 1/2 mm, outside diameter: 3/4 mm, outside diameter: 1 mm, outside diameter: 2 mm, outside diameter: 5/16 mm, outside diameter: 11/4 mm

Property Value
Wrench size: 15 mm
Thread pitch: 1.5 mm
Nominal thread size metric/PG: 12
Suitable for cable diameters: 4.5 to 6.0 mm
Protection class (IP): IP68
Operating temperature: -40 to 100 °C
Halogen-free: yes
Thread length: 10 mm
Thread type: metric
Design: straight
Material: metal
With strain relief: yes
Surface: nickel-plated
Type of seal: sealing ring
Impact-resistant: yes
Bending protection: no
Material quality: brass
Fiberglass reinforced: no
With lock nut: no
Multiple sealing insert: no
Flat cable screw connection: no
Dividable screw connection: no
Explosion-tested version: no
For Ex-zone gas: without
For Ex-zone dust: without

Characteristics

Impact resistantYes
Explosion-tested versionNo
Nominal thread size metric/PG12
Fiberglass reinforcedNo
Suitable for cable diameter4.5 to 6.0mm
Wrench size15 mm
HABProgress MS 4.5-6.0mm hose 1/4
ManufacturerKaiser
HAN1710.80.12.060.2
GTIN7611614145624
VersionStraight
Operating temperature-40 to 100 °C
Thread typeMetric
Thread length10 mm
Thread1.5 mm
Halogen freeYes
With strain reliefYes
SurfaceNickel-plated
IP protection)IP68
MaterialMetal
Material qualityBrass
Kaiser Progress MS 4.5-6.0mm hose 1/4 combination screw connection EMV M12, 1710.80.12.060.2
Kaiser Progress MS 4.5-6.0mm hose 1/4 combination screw connection EMV M12, 1710.80.12.060.2
