Catalog

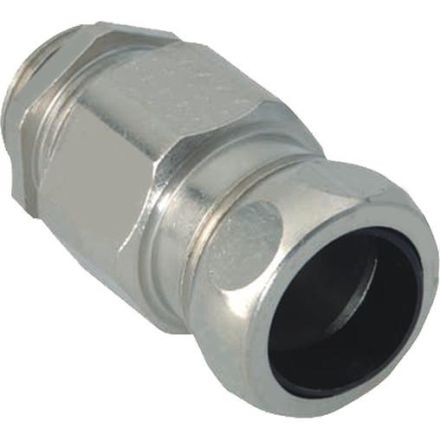

Kaiser Progress Ms 5.0-6.5mm hose AD 10mm combination hose fitting Pg7, 1700.12.10

In stock
SKU: 497719
€17.11
Into a basketIn the basketGo

Overview

Operating temperature: -40°C / +100°C, Thread length: Short, Clamping technology: Compression technology, Outside diameter: 10 mm, Outside diameter: 14 mm, Outside diameter: 17 mm, Outside diameter: 19 mm, Outside diameter: 21 mm, Outside diameter: 27 mm, Outside diameter: 36 mm, Outside diameter: 45 mm, Outside diameter: 56 mm

Property Value
Wrench size: 15 mm
Thread pitch: 1.5 mm
Nominal thread size metric/PG: 12
Suitable for cable diameters: 5.0 to 6.5 mm
Protection class (IP): IP68
Operating temperature: -40 to 100 °C
Halogen-free: yes
Thread length: 5 mm
Thread type: metric
Design: straight
Material: metal
With strain relief: yes
Surface: nickel-plated
Type of seal: sealing ring
Impact-resistant: yes
Bending protection: no
Material quality: brass
Fiberglass reinforced: no
With lock nut: no
Multiple sealing insert: no
Flat cable gland: no
Dividable gland: no
Explosion-tested version: no
For Ex-zone gas: without
For Ex-zone dust: without

Characteristics

Impact resistantYes
Explosion-tested versionNo
Nominal thread size metric/PG12
Fiberglass reinforcedNo
Suitable for cable diameter5.0 to 6.5mm
Wrench size15 mm
HABProgress Ms 5.0-6.5mm hose OD 10mm
ManufacturerKaiser
HAN1700.12.10
GTIN7611614143897
VersionStraight
Operating temperature-40 to 100 °C
Thread typeMetric
Thread length5 mm
Thread1.5 mm
Halogen freeYes
With strain reliefYes
SurfaceNickel-plated
IP protection)IP68
MaterialMetal
Material qualityBrass
Kaiser Progress Ms 5.0-6.5mm hose AD 10mm combination hose fitting Pg7, 1700.12.10
