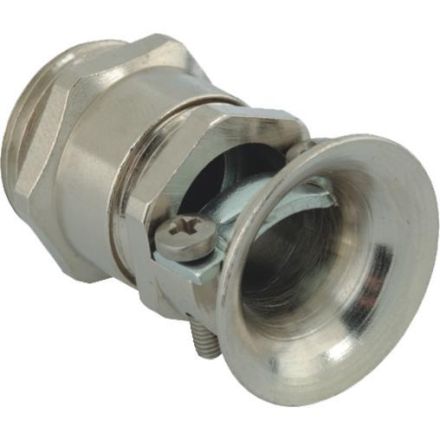

Kaiser trumpet brass 8-12mm stuffing box PG11, 1801.11

In stock
SKU: 496748
€21.76
Into a basketIn the basketGo

Overview

Thread length: Short, Clamping technology: Compression technology, Technical features: With clamping jaws, Technical features: With trumpet, Operating temperature: -20°C / +80°C, Technical features: Stuffing box

Property Value
Wrench size: 20 mm
Nominal thread size metric/PG: 11
Suitable for cable diameters: 8.0 to 12.0 mm
Protection class (IP): IP54
Operating temperature: -20 to 80 °C
Halogen-free: yes
Thread length: 6 mm
Thread type: PG
Design: straight
Material: metal
With strain relief: yes
Surface: nickel-plated
Type of seal: sealing ring
Impact-resistant: yes
Bending protection: no
Material quality: Brass
Fiberglass reinforced: no
With lock nut: no
Multiple sealing inserts: no
Flat cable screw connection: no
Dividable screw connection: no

Characteristics

Impact resistantYes
Nominal thread size metric/PG11
Fiberglass reinforcedNo
Suitable for cable diameter8.0 to 12.0mm
Wrench size20 mm
HABTrumpet brass 8-12mm
ManufacturerKaiser
HAN1801.11
GTIN7611614006147
VersionStraight
Operating temperature-20 to 80 °C
Thread typePG
Thread length6 mm
Halogen freeYes
With strain reliefYes
SurfaceNickel-plated
IP protection)IP54
MaterialMetal
Material qualityBrass
Kaiser trumpet brass 8-12mm stuffing box PG11, 1801.11
Kaiser trumpet brass 8-12mm stuffing box PG11, 1801.11
€21.76
Into a basketIn the basketGo
