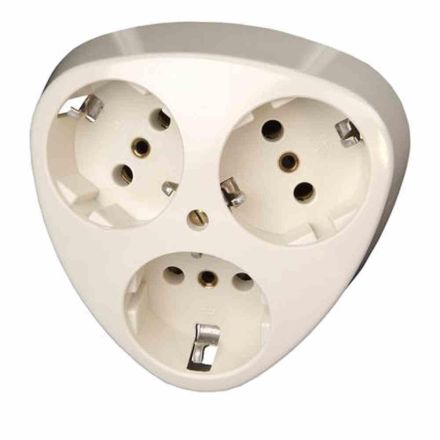

Kopp 111401004 socket 3f cws mt UP IP20 VP

In stock

SKU: 921543

Price on request

€7.97

€0

Overview

3-way protective contact socket in STANDARD design, without increased contact protection, complete device for installation in a 1-way switch box Ø60mm, 16A, 250V~, protection class IP20, color: cream white solid plate socket, 3f, cream white/electric white, matt, flush-mounted, horizontal/vertical, IP20,

Property	Value
Weight (kg):	0.12
Color:	white
Version:	Protective contact type F
Designation:	3-way protective contact socket square
Gross length (mm):	99
Gross width (mm):	96
Gross height (mm):	51
Material:	Plastic
Halogen-free:	yes
Mounting type:	Flush-mounted
Nominal voltage (V):	250
Nominal current (A):	16
Mounting type:	Claw/screw fastening
Connection type:	screw terminal
Surface:	untreated
Surface finish:	matt
RAL number (similar):	1013
Frequency range (Hz):	50...60
Cover:	Solid plate
Can be switched off:	no
Lockable:	no
Number of units:	3
Print/marking:	without
Ejection mechanism:	no
Residual current protection:	no
For 'difficult conditions' (according to VDE):	no
Suitable for protection class (IP):	IP20
With increased contact protection:	no
With fine fuse:	no
With hinged lid:	no
