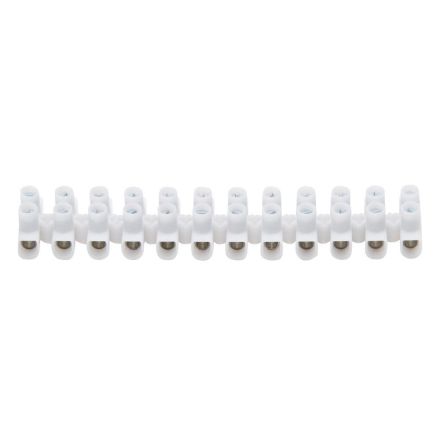

Kopp 343700087 lamp terminal 6.0mm 2pcs.

In stock

SKU: 921542

Price on request

€2.62

€0

Overview

Lamp terminal block, 12-pin, (2 pieces in self-service packaging), 6mm² lamp terminal, 2.5-6mm², 41A, 12p, thermoplastic, white, screw connection

Property	Value
Weight (kg):	0.06
Color:	white
Contents:	2 pieces
Designation:	6.0 mm²
Length (mm):	150
Height (mm):	17
Gross length (mm):	165
Gross width (mm):	61
Gross height (mm):	18
Number of poles:	12
Mounting type:	Direct mounting
Rated voltage (V):	450
End plate required:	no
Connectable conductor cross-section, single-wire (mm²):	2.5...6
Connectable conductor cross-section, fine-wire with wire end ferrule (mm²):	2.5...6
Connectable conductor cross-section, fine-wire without wire end ferrule (mm²):	2.5...6
Connectable conductor cross-section, stranded (mm²):	2.5...6
Connectable conductor cross-section, stranded (mm²):	2.5...6
Connection position:	top
Number of terminal points per pole:	1
Design of electrical connection 1:	Screw connection
Electrical connection design 2:	Screw connection
Rated current In (A):	41
