Kopp 912613066 socket 2f arkws mt UP m.erh.BS IP20 VP

In stock

SKU: 921612

Price on request

€8.02

€0

Overview

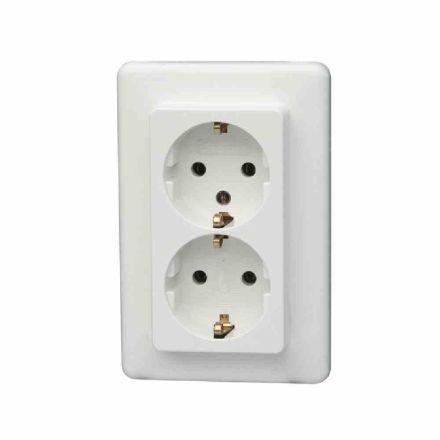

2-way protective contact socket in EUROPA design and the color arctic white, without increased contact protection, complete device for installation in a 1-way switch box Ø60mm, 16A, 250V~, protection class IP20 IP20, full plate socket, 2f, arctic white, matt, flush-mounted, with increased contact protection, horizontal/vertical,

Property	Value
Color:	white
Version:	Protective contact type F
Designation:	Protective contact double socket Ø 60mm
Gross length (mm):	159
Gross width (mm):	83
Gross height (mm):	51
Material:	Plastic
Halogen-free:	yes
Mounting type:	Flush-mounted
Nominal voltage (V):	250
Nominal current (A):	16
Mounting type:	Claw/screw fastening
Connection type:	Plug-in terminal
Surface:	untreated
Surface finish:	matt
Frequency range (Hz):	50...60
Cover:	Solid plate
Can be switched off:	no
Lockable:	no
Number of units:	2
Print/marking:	without
Ejection mechanism:	no
Residual current protection:	no
For 'difficult conditions' (according to VDE):	no
Suitable for protection class (IP):	IP20
With increased contact protection:	yes
With fine fuse:	no
With hinged lid:	no
