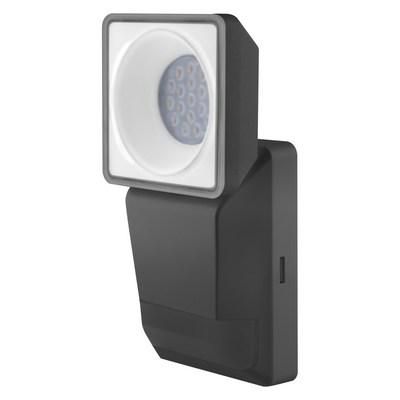

HABE PRO SPOT S 8W 840 IP55 DG
HAN4058075228887
GTIN4058075228887
Covering the luminaire with thermal insulation material possibleNo
Type of wiringDiploma
Beam angleWide beam 41-80°
Rated lifetime L70/B50 at 25 °C30000 hours
Rated luminous flux according to IEC 62722-2-1750lm
Rated ambient temperature according to IEC62722-2-1-20 to 40 °C
Operating deviceElectronic ballast
Suitable for computer workstations according to EN 12464-1No
Width58.00 mm
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALINo
Dimming DMXNo
Dimming DSINo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeNo
Dimming phase controlNo
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableNo
Color consistency (McAdam ellipse)SDCM6
Color temperature4000K
Color rendering index CRI80-89
Suitable for surface mountingYes
Suitable for ceiling mountingNo
Suitable for flush mountingNo
Suitable for clamp mountingNo
Suitable for pendulum suspensionNo
Suitable for podium/floor mountingNo
Suitable for rope systemNo
Suitable for busbar mountingNo
Suitable for truss mountingNo
Height/Depth187.00 mm
Power factor0.85
Luminaire with limited surface temperature D-markNo
Luminaire luminous efficacy86lm/W
Light emissionDirect
Light colorWhite
Luminous flux750lm
Length87.00 mm
Max. system performance8.00W
With operating deviceYes
With motion detectorYes
With light sourceYes
With light sensorYes
Nominal voltage220 to 240 V
Brushed surfaceNo
Without dimming functionYes
Photobiological safety according to EN 62471RG1
Number of poles3
ReflectorWithout
Impact resistanceIK05
IP protection)IP55
Protection classII
Voltage typeAC
AdjustabilityRotatable and pivotable
Cover materialPlastic opal
Housing materialPlastic
