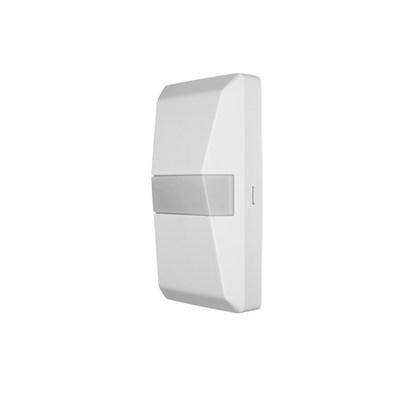

HABE PRO UPDOWN S 10W 840 IP55 WT
HAN4058075228948
GTIN4058075228948
Covering the luminaire with thermal insulation material possibleNo
Connection typePlug-in terminal
Type of wiringDiploma
Execution of the gridFrosted
Beam angleWide beam 41-80°
Rated lifetime L70/B50 at 25 °C30000 hours
Rated luminous flux according to IEC 62722-2-11000lm
Rated ambient temperature according to IEC62722-2-1-20 to 40 °C
Operating deviceElectronic ballast
Suitable for computer workstations according to EN 12464-1No
Width55.00 mm
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALINo
Dimming DMXNo
Dimming DSINo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeNo
Dimming phase controlNo
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableNo
Color temperature4000K
Color rendering index CRI80-89
Suitable for surface mountingYes
Suitable for ceiling mountingNo
Suitable for flush mountingNo
Suitable for light strip configurationNo
Suitable for emergency lightingNo
Suitable for pendulum suspensionNo
Housing colorWhite
Height/Depth180.00 mm
Power factor0.85
Luminaire with limited surface temperature D-markNo
Luminaire luminous efficacy91lm/W
Light emissionDirect
Light colorWhite
Length87.00 mm
Max. system performance10.00 W
With operating deviceYes
With motion detectorYes
With light sourceYes
With light sensorYes
With air slotsNo
Nominal voltage220 to 240 V
Without dimming functionYes
Number of poles3
Impact resistanceIK05
IP protection)IP55
Protection classII
Voltage typeAC
Cover materialPlastic opal
Housing materialPlastic
