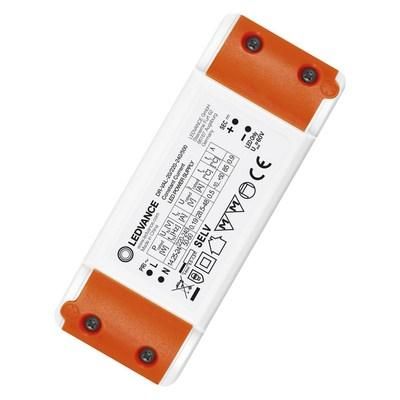

Constant current LED driver with dedicated power. Product features: Available in 15 W, 20 W, 30 W, 45 W and 60 W. Integrated cable clamp for independent installation. Service life: up to 35,000 h (at max. tc temperature). Protection class: IP20. Constant output current. Low ripple current < 5%. Supply voltage: 220240 V. Operating frequency: 50/60 Hz. Operation with less than 60 V: Safety Extra Low Voltage (SELV). Short circuit and overload protection. Product advantages: Suitable for operation with many discrete LEDs and COB LEDs. Excellent price-performance ratio. 3 year warranty. Quick and easy installation. High efficiency and reliability. Areas of application: Suitable for LED luminaires and LED modules. Suitable for luminaires of protection class I and II. For SELV installations indoors. Offices, shopping centers, hospitals, restaurants, hotels.
| Feature | Value |
| Output power: | 20 W |
| Length: | 115.0 mm |
| Width: | 45.0 mm |
| Height: | 28.0 mm |
| Protection class (IP) : | IP20 |
| Design: | static |
| Housing: | plastic housing |
| Suitable for outdoor use: | no |
| Output voltage: | 48 V |
| Suitable for Constant voltage: | no |
| Suitable for constant current: | yes |
| Output current: | 500 mA |
| Suitable for direct voltage (primary side): | no |
| Protection class: | II |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming DALI: | no |
| Dimming DSI: | no |
| Dimming DMX: | no |
| Dimming potentiometer (device integrated): | no |
| Dimming GPRS: | no |
| Dimming LineSwitch: | no |
| Dimming manufacturer-specific: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Without dimming function: | yes |
