Energy efficiency class of the permanently installed light sourceA++, A+, A (LED)
Rated service life L70/B10 at 25 °C30000 h

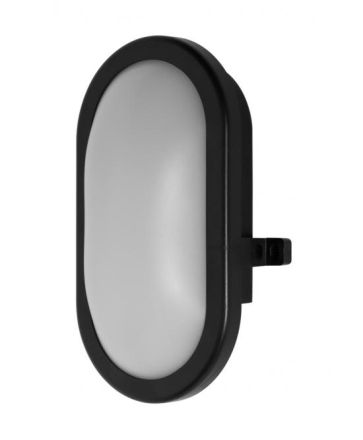

HABLED BULKHEAD 11W 840 BK
HAN4058075271685
GTIN4058075271685
Covering the luminaire with thermal insulation material possibleNo
Rated luminous flux according to IEC 62722-2-1800lm
Operating deviceElectronic ballast
Suitable for computer workstations according to EN 12464-1No
Width143.0 mm
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALINo
Dimming DMXNo
Dimming DSINo
Dimming GPRSNo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeNo
Dimming phase controlNo
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming depends on the control gearNo
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableNo
Color temperature4000K
Color rendering index CRI80-89
Suitable for surface mountingYes
Suitable for ceiling mountingNo
Suitable for flush mountingNo
Suitable for light strip configurationNo
Suitable for emergency lightingNo
Suitable for pendulum suspensionNo
Suitable for wall mountingYes
Housing colorBlack
Height/Depth79.0 mm
LED nominal current at constant current105mA
Power factor0.5
Luminaire with limited surface temperature D-markNo
Luminaire luminous efficacy76lm/W
LampsLED not replaceable
Light colorWhite
Length216.0 mm
Max. system performance11.00 W
With operating deviceYes
With motion detectorNo
With light sourceNo
With light sensorNo
With air slotsNo
Nominal voltage220 to 240 V
Without dimming functionYes
Impact resistanceIK06
IP protection)IP54
Protection classII
Voltage typeAC
Cover materialPlastic opal
Housing materialPlastic
