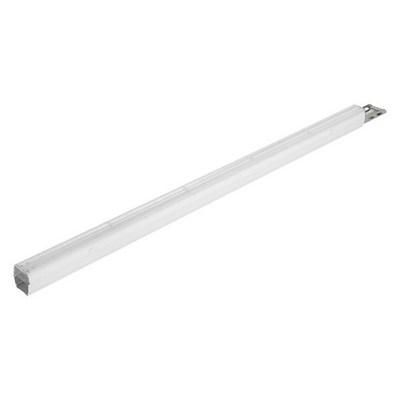

LEDVANCE Osram 4058075398771 TRUSYS PFM 50W/4000K VW LED luminaire insert

LEDVANCE Osram 4058075398771 TRUSYS PFM 50W/4000K VW LED luminaire insert

In stock

SKU: 732564

Price on request

€181.78

€0

Overview

Luminaire inserts with very wide light emission. Product features: Very wide beam angle: 120. Clickable solution with push buttons. Light output: up to 160 lm/W. Fixed luminaire taps. Lumen package 5600 lm, 8000 lm, 11200 lm. Sheet steel housing. Lens material: PMMA. Protection class: IP20. Uniform family design with LEDVANCE. Service life (L80/B10): up to 60,000 hours. Product advantages: Very wide light distribution for area illumination. Easy installation, tool-free connection. Energy-saving and cost-effective. Flexible application thanks to a wide range of different lumen packages and luminaire opening angles. Light strips with up to 57 (on-off) / 66 (DALI) luminaires possible. Versions with DALI electronic ballast available. Areas of application: Direct replacement for luminaires with fluorescent lamps. Industrial halls, high-bay warehouses, workshops, hardware stores. Discounters, supermarkets. Technical equipment: mounting rail with permanently integrated 5- and 8-pole cable harness.

Property	Value
Rated luminous flux according to IEC 62722-2-1:	8000 lm
Color temperature:	4000 K
With light source:	no
Operating device:	EVG
Length:	1500 mm
Height/depth:	39.4 mm
Protection rating (IP):	IP20
Protection class:	I
Light emission:	direct
Suitable for emergency lighting:	no
Housing material:	steel
Housing color:	white
Color rendering index CRI:	80-89
With control gear:	yes
Reflector:	without
Nominal voltage:	220 to 240 V
Light source:	LED not replaceable
Light color:	white
Voltage type:	AC
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming manufacturer-specific:	no
Dimming DSI:	no
Dimming potentiometer (integrated in device):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without Dimming function:	yes
Light distributor:	Focus lens
Beam angle:	free beam/diffuse
Energy efficiency class of the built-in light source:	A++, A+, A (LED)
Rated service life L70/B10 at 25 °C:	65000 h
Rated service life L70/B50 at 25 °C:	65000 h
Rated service life L80/B10 at 25 °C:	60000 h
Rated service life L80/B50 at 25 °C:	60000 h
Rated service life L90/B10 at 25 °C:	50000 h
Rated service life L90/B50 at 25 °C:	50000 h
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
Max. system power:	50.00 W
Power factor:	0.90
Number of poles:	2

Characteristics

Energy efficiency class of the permanently installed light sourceA++, A+, A (LED)

Rated service life L90/B10 at 25 °C50000 h

Rated service life L70/B10 at 25 °C65000 h

Rated service life L80/B50 at 25 °C60000 h

HABTRUSYS PFM 50W/4000K VW

Manufacturer

HAN4058075398771

GTIN4058075398771

Beam angleFree-radiating/diffuse

Rated lifetime L70/B50 at 25 °C65000 hours

Rated lifetime L80/B10 at 25 °C60000 hours

Rated luminous flux according to IEC 62722-2-18000lm

Operating deviceElectronic ballast

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature4000K

Color rendering index CRI80-89

Suitable for emergency lightingNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth39.4 mm

Power factor0.90

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Light distributorFocus lens

Length1500 mm

Max. system performance50.00W

With operating deviceYes

With light sourceNo

Nominal voltage220 to 240 V

Without dimming functionYes

Number of poles2

ReflectorWithout

IP protection)IP20

Protection classI

Voltage typeAC

Housing materialSteel
