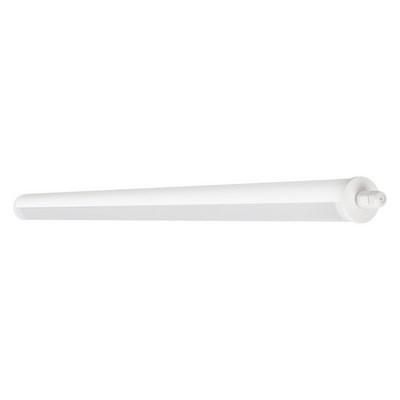

HABDP SPECIAL 1500 30W/4000K WT IP67
HAN4058075452138
GTIN4058075452138
Covering the luminaire with thermal insulation material possibleNo
Connection typePlug-in terminal
Type of wiringWith through wiring
Execution of the gridFrosted
Outer diameter74.00 mm
Rated lifetime L70/B50 at 25 °C80000 hours
Rated luminous flux according to IEC 62722-2-13900lm
Rated ambient temperature according to IEC62722-2-1-20 to 40 °C
Operating deviceElectronic ballast
Suitable for computer workstations according to EN 12464-1No
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALINo
Dimming DMXNo
Dimming DSINo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeNo
Dimming phase controlNo
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableNo
Color temperature4000K
Color rendering index CRI80-89
Suitable for surface mountingYes
Suitable for ceiling mountingYes
Suitable for flush mountingNo
Suitable for light strip configurationNo
Suitable for emergency lightingNo
Suitable for pendulum suspensionYes
Housing colorWhite
Glow wire test according to IEC 60695-2-11650 °C - 30 s
Height/Depth82.00 mm
Power factor0.90
Luminaire luminous efficacy130lm/W
LampsLED not replaceable
Light emissionDirect
Light colorWhite
Light distributorDiffuser lens/optics/panel
Length1644.00 mm
Max. system performance30.00W
With operating deviceYes
With motion detectorNo
With light sourceYes
With light sensorNo
With air slotsNo
Nominal voltage220 to 240 V
Without dimming functionYes
Number of poles3
Impact resistanceIK06
IP protection)IP67
Protection classI
Voltage typeAC
