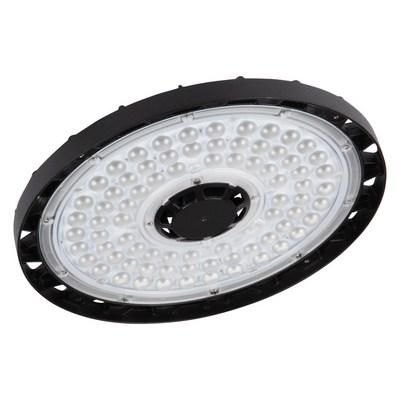

LEDVANCE Osram 4058075452541 HB 93W/6500K 70DEG IP65 VS1 LED high bay luminaire

LEDVANCE Osram 4058075452541 HB 93W/6500K 70DEG IP65 VS1 LED high bay luminaire

In stock

SKU: 732554

Price on request

€185.61

€0

Overview

High bay luminaires up to 140 lm/W and attractive UGR values. Product features: Different luminous fluxes and opening angles for mounting heights from ~ 6 m to 14 m in 4000 K or 6500 K. Product advantages: Improved UGR compared to previous generations, up to UGR 22 in combination with reflector. High luminous efficacy. Up to 60% energy savings compared to conventional high bay luminaires. 5-year guarantee. Weight and size optimization through compact design. Areas of application: Replacement for high bay luminaires with mercury vapor or metal halide lamps. Warehouses. Logistics halls. Industry. High ceilings (e.g. in shopping centers, airports, commercial buildings, lobbies). Technical equipment: Mounting ring included. Mounting brackets, reflectors and refractors available as separate accessories.

Property	Value
Max. system power:	93.00 W
Rated luminous flux according to IEC 62722-2-1:	13000 lm
Protection class:	I
Impact resistance:	IK08
Protection rating (IP):	IP65
Housing color:	black
Color temperature:	6500 K
Light source:	LED not replaceable
Length:	280.00 mm
Height/Depth:	143.00 mm
Socket:	without
With light source:	yes
Nominal voltage:	220 to 240 V
Beam angle:	wide beam 41-80°
DALI dimming:	no
With operating device:	yes
Voltage type:	AC
Suitable for emergency lighting:	no
Material of Housing:	Aluminum
With protective cover:	yes
Reflector:	without
Luminaire with limited surface temperature 'D-mark':	yes
Color rendering index CRI:	80-89
Light distribution:	symmetrical
Suitable for secondary lamps:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming potentiometer (integrated in the device):	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	yes
Light distributor:	Focus lens
Rated service life L70/B50 at 25 °C:	80000 h
Glow wire test according to IEC 60695-2-11:	850 °C - 30 s
Rated ambient temperature according to IEC62722-2-1:	-30 to 55 °C
Power factor:	0.95
Outer diameter:	280.00 mm
Wiring type:	Termination
Number of poles:	3
Connection type:	other

Characteristics

HAB93W/6500K 70DEG IP65 VS1

Manufacturer

HAN4058075452541

GTIN4058075452541

Connection typeOther

Type of wiringDiploma

Beam angleWide beam 41-80°

Outer diameter280.00 mm

Rated lifetime L70/B50 at 25 °C80000 hours

Rated luminous flux according to IEC 62722-2-113000lm

Rated ambient temperature according to IEC62722-2-1-30 to 55 °C

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature6500K

Color rendering index CRI80-89

VersionWithout

Suitable for emergency lightingNo

Housing colorBlack

Glow wire test according to IEC 60695-2-11850 °C - 30 s

Height/Depth143.00 mm

Power factor0.95

Luminaire with limited surface temperature D-markYes

LampsLED not replaceable

Light distributorFocus lens

Light distributionSymmetrical

Length280.00 mm

Max. system performance93.00W

With operating deviceYes

With light sourceYes

With protective coverYes

Nominal voltage220 to 240 V

Without dimming functionYes

Number of poles3

ReflectorWithout

Impact resistanceIK08

IP protection)IP65

Protection classI

Voltage typeAC

Housing materialAluminum
