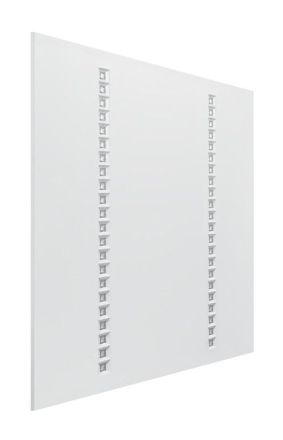

LEDVANCE Osram 4058075521841 PL INDV 600 33W/4000K ZBVR LED recessed luminaire

LEDVANCE Osram 4058075521841 PL INDV 600 33W/4000K ZBVR LED recessed luminaire

In stock

SKU: 777535

Price on request

€194.88

€0

Overview

Square recessed luminaires with IndiviLED® optics, 600 mm and Zigbee 3.0 technology. Product features: IoT-capable luminaire with Zigbee 3.0 technology. Each LED with individual lens and reflector for UGR < 16 and homogeneous light distribution. Service life (L80/B50): up to 50,000 h (at 25 °C). Metal housing, lenses and reflectors made of polycarbonate (PC). Luminous flux: up to 4,000 lm. Luminous efficacy: up to 120 lm/W. Initial color consistency: 3 SDCM (threshold unit). Glow wire test according to IEC 60695-2-12: 850 °C. Product advantages: Suitable luminaire for VIVARES and other Zigbee 3.0 light management systems. Homogeneous light distribution and reduced glare thanks to the IndiviLED® optics. Up to 50% energy savings (compared to luminaires that use fluorescent lamps). Robust housing with IK08. Low-flicker light thanks to special electronic ballast. 5-year guarantee. Areas of application: Direct replacement for luminaires with fluorescent lamps. Corridors. Offices. Conference rooms. Reception areas. Entrance areas. Elevators. Suitable for ceiling recessed systems with a grid size of 600 x 600 mm. Technical equipment: Accessories available for various installation options. Safety cable for luminaires included. External ballast included.

Property	Value
Max. System power:	33.00 W
Rated luminous flux according to IEC 62722-2-1:	4000 lm
Length:	595.00 mm
Width:	595.00 mm
Height/depth:	13.00 mm
Protection class (IP):	IP40
Protection class:	II
Luminaire with limited surface temperature 'D-mark':	no
Nominal voltage:	220 to 240 V
Housing color:	white
Housing material:	steel
Color temperature:	4000 K
Impact resistance:	IK08
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Voltage type:	AC
With motion detector:	no
Beam angle:	wide beam 41-80°
With light source:	yes
Light source:	LED not replaceable
Rated ambient temperature according to IEC62722-2-1:	-20 to 45 °C
Connection type:	Plug-in terminal
With control gear:	yes
Cover material:	Opal plastic
Light distributor:	Focus lens
Installation height/depth:	50.0 mm
Without dimming function:	no
Installation width:	575 mm
Light emission:	direct
With light sensor:	no
Operating device:	EVG
Suitable for recessed mounting:	yes
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	yes
Suitable for light strip configuration:	no
Suitable for pendant suspension:	yes
Suitable for surface mounting:	yes
Suitable for emergency lighting:	no
Installation length:	575 mm
Grid design:	matt
Covering of the light with thermal insulation material possible:	no
DMX dimming:	no
DSI dimming:	no
With air slots:	no
LineSwitch dimming:	no
Potentiometer dimming (integrated in the device):	no
0-10 V dimming:	no
Dimming 1-10 V:	no
Manufacturer-specific dimming:	no
DALI dimming:	no
Mains voltage modulation dimming:	no
Trailing edge dimming:	no
Phase control dimming:	no
Programmable dimming:	no
RF dimming:	no
Sine wave reduction dimming:	no
Touch and dim dimming:	no
Dimming Zigbee:	yes
Dimming with push button:	no
Rated service life L70/B50 at 25 °C:	80000 h
Glow wire test according to IEC 60695-2-11:	850 °C - 30 s
Luminaire luminous efficacy:	120 lm/W
Power factor:	0.90
Type of wiring:	Termination
Number of poles:	2

Characteristics

HABPL INDV 600 33W/4000K ZBVR

Manufacturer

HAN4058075521841

GTIN4058075521841

Covering the luminaire with thermal insulation material possibleNo

Connection typePlug-in terminal

Type of wiringDiploma

Execution of the gridFrosted

Beam angleWide beam 41-80°

Rated lifetime L70/B50 at 25 °C80000 hours

Rated luminous flux according to IEC 62722-2-14000lm

Rated ambient temperature according to IEC62722-2-1-20 to 45 °C

Operating deviceElectronic ballast

Suitable for computer workstations according to EN 12464-1Yes

Width595.00 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeYes

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation width575 mm

Installation height/depth50.0 mm

Installation length575 mm

Color temperature4000K

Color rendering index CRI80-89

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionYes

Housing colorWhite

Glow wire test according to IEC 60695-2-11850 °C - 30 s

Height/Depth13.00 mm

Power factor0.90

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy120lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Light distributorFocus lens

Length595.00 mm

Max. system performance33.00W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage220 to 240 V

Without dimming functionNo

Number of poles2

Impact resistanceIK08

IP protection)IP40

Protection classII

Voltage typeAC

Cover materialPlastic opal

Housing materialSteel
