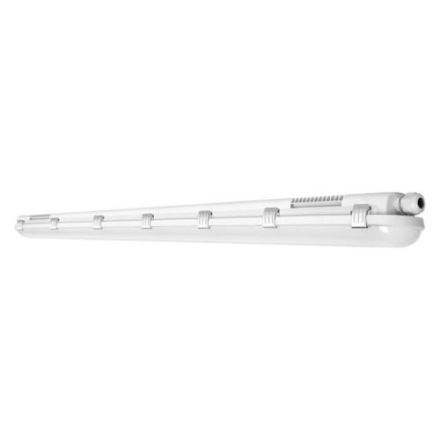

HABDP 1500 58W 865 IP65 GY
HAN4058075541269
GTIN4058075541269
Covering the luminaire with thermal insulation material possibleNo
Connection typePlug-in terminal
Type of wiringSuitable for through wiring
Execution of the gridOther
Rated lifetime L70/B50 at 25 °C70000 hours
Rated luminous flux according to IEC 62722-2-18000lm
Rated ambient temperature according to IEC62722-2-1-25 to 40 °C
Operating deviceElectronic ballast
Suitable for computer workstations according to EN 12464-1No
Width82.00 mm
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALINo
Dimming DMXNo
Dimming DSINo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeNo
Dimming phase controlNo
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableNo
Color temperature6500K
Color rendering index CRI80-89
Suitable for surface mountingYes
Suitable for ceiling mountingYes
Suitable for flush mountingNo
Suitable for light strip configurationNo
Suitable for emergency lightingNo
Suitable for pendulum suspensionYes
Housing colorGray
Glow wire test according to IEC 60695-2-11850 °C - 30 s
Height/Depth68.00 mm
Power factor0.90
Luminaire luminous efficacy135lm/W
LampsLED not replaceable
Light emissionDirect
Light distributorDiffuser lens/optics/panel
Length1500.00 mm
Max. system performance58.00W
With operating deviceYes
With motion detectorNo
With light sourceYes
With light sensorNo
With air slotsNo
Nominal voltage220 to 240 V
Without dimming functionYes
Number of poles3
Impact resistanceIK08
IP protection)IP65
Protection classI
Voltage typeAC
Cover materialPlastic opal
Housing materialPlastic
