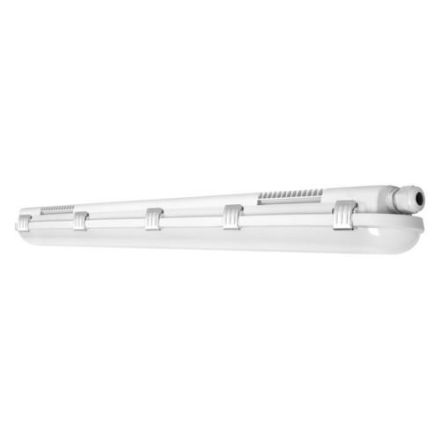

LEDVANCE Osram 4058075541405 DP EM 1200 32W 865 IP65 GY LED moisture-proof luminaire

In stock
SKU: 777472
€162.17
Into a basketIn the basketGo

Overview

Damp-proof luminaires, classic shape with integrated safety lighting function. Product features: Luminaire suitable for general lighting and safety lighting. Certified according to European standards (EN 60598-1:2015, EN 60598-2-22:2014). Self-contained luminaires. Safety lighting function: battery discharge time 3 hours. Safety lighting function test: automatic (AT). Battery technology: LiFePO4. High luminous efficacy: up to 139 lm/W. Protection class: IP65. Beam angle: 110°. Product advantages: Seamless integration of luminaires with safety lighting function into general lighting. Simple wiring thanks to the included, pre-wired driver and battery for the safety lighting function. Easy testing of the safety lighting function thanks to the integrated automatic test function. Convenient visualization of the results of the automatic test with the included control LED. Operation of the safety lighting function with a long-lasting LiFePO4 battery with a 3h operating discharge time. Uniform light distribution in normal operation. Up to 60% energy savings (compared to luminaires that use fluorescent lamps). Easy installation, tool-free connection. 3-year guarantee. Areas of application: Emergency lighting for escape routes. Anti-panic lighting. Buildings that require 3-hour emergency lighting. Industrial and storage areas. Car parks and underpasses. Garages. Workshops, production lines. Technical equipment: Stainless steel brackets and security screws included. Installation accessories included (suspension kit, anti-theft kit).

PropertyValue
Max. System power:32.00 W
Rated luminous flux according to IEC 62722-2-1:4400 lm
Length:1200.00 mm
Width:82.00 mm
Height/depth:68.00 mm
Protection class (IP):IP65
Protection class:I
Nominal voltage:220 to 240 V
Housing color:gray
Material of Housing:Plastic
Color temperature:6500 K
Impact resistance:IK08
Color rendering index CRI:80-89
Suitable for ceiling mounting:yes
Voltage type:AC
With motion detector:no
With light source:yes
Light source:LED not replaceable
Rated ambient temperature according to IEC62722-2-1:5 to 35 °C
Connection type:Plug-in terminal
With operating device:yes
Cover material:Opal plastic
Light distributor:Diffuser lens/optics/panel
Without dimming function:yes
Light emission:direct
With light sensor:no
Operating device:EVG
Suitable for built-in installation:no
Suitable for computer workstations in accordance with EN 12464-1:no
Suitable for strip light configuration:no
Suitable for pendant suspension:yes
Suitable for surface mounting:yes
Suitable for emergency lighting:yes
Design of the grid:other
Covering of the luminaire with thermal insulation material possible:no
Dimming DMX:no
Dimming DSI:no
With air slots:no
Dimming LineSwitch:no
Dimming potentiometer (integrated in device):no
Dimming 0-10 V:no
Dimming 1-10 V:no
Dimming manufacturer-specific:no
Dimming DALI:no
Dimming mains voltage modulation:no
Dimming trailing edge:no
Dimming leading edge:no
Dimming programmable:no
Dimming RF:no
Dimming Sine Wave Reduction:no
Dimming Touch and Dim:no
Dimming Zigbee:no
Dimming with push button:no
Rated service life L70/B50 at 25 °C:70000 h
Glow wire test according to IEC 60695-2-11:850 °C - 30 s
Luminaire luminous efficacy:138 lm/W
Power factor:0.90
Wiring type:suitable for through wiring
Number of poles:3

Characteristics

HABDP EM 1200 32W 865 IP65 GY
ManufacturerLEDVANCE Osram
HAN4058075541405
GTIN4058075541405
Covering the luminaire with thermal insulation material possibleNo
Connection typePlug-in terminal
Type of wiringSuitable for through wiring
Execution of the gridOther
Rated lifetime L70/B50 at 25 °C70000 hours
Rated luminous flux according to IEC 62722-2-14400lm
Rated ambient temperature according to IEC62722-2-15 to 35 °C
Operating deviceElectronic ballast
Suitable for computer workstations according to EN 12464-1No
Width82.00 mm
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALINo
Dimming DMXNo
Dimming DSINo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeNo
Dimming phase controlNo
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableNo
Color temperature6500K
Color rendering index CRI80-89
Suitable for surface mountingYes
Suitable for ceiling mountingYes
Suitable for flush mountingNo
Suitable for light strip configurationNo
Suitable for emergency lightingYes
Suitable for pendulum suspensionYes
Housing colorGray
Glow wire test according to IEC 60695-2-11850 °C - 30 s
Height/Depth68.00 mm
Power factor0.90
Luminaire luminous efficacy138lm/W
LampsLED not replaceable
Light emissionDirect
Light distributorDiffuser lens/optics/panel
Length1200.00 mm
Max. system performance32.00W
With operating deviceYes
With motion detectorNo
With light sourceYes
With light sensorNo
With air slotsNo
Nominal voltage220 to 240 V
Without dimming functionYes
Number of poles3
Impact resistanceIK08
IP protection)IP65
Protection classI
Voltage typeAC
Cover materialPlastic opal
Housing materialPlastic
LEDVANCE Osram 4058075541405 DP EM 1200 32W 865 IP65 GY LED moisture-proof luminaire
