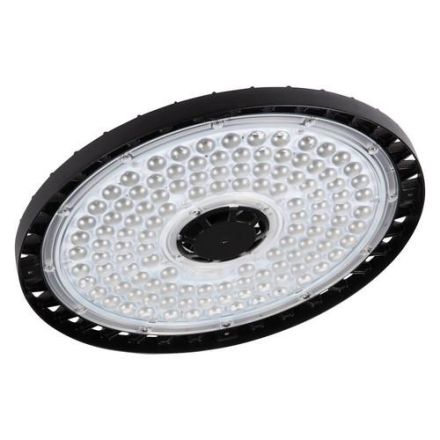

LEDVANCE Osram 4058075543935 HB DALI 155W/4000K 70DEG IP65 LED high bay luminaire

LEDVANCE Osram 4058075543935 HB DALI 155W/4000K 70DEG IP65 LED high bay luminaire

In stock

SKU: 777483

Price on request

€331.73

€0

Overview

LED hall lights with DALI interface. Product features: Preset DALI driver included. Light output: up to 140 lm/W. Protection class: IP65. Dimming range (DALI): 10,100%. Product advantages: High compatibility thanks to DALI-2 validation. DALI 2.0 interface for use with dimmers and sensors. Low-flicker light thanks to special electronic ballast. High light output. Up to 90% energy savings compared to conventional hall mirror lights. 5-year guarantee. Areas of application: Replacement for hall mirror lights with mercury vapor or metal halide lamps. Warehouses. Logistics halls. Industry. High ceilings (e.g. in shopping centers, airports, commercial buildings, lobbies). Technical equipment: Mounting ring and bracket included. Reflectors and refractors available as separate accessories.

Property	Value
Max. system power:	155.00 W
Rated luminous flux according to IEC 62722-2-1:	22000 lm
Protection class:	I
Impact resistance:	IK08
Protection rating (IP):	IP65
Housing color:	black
Color temperature:	4000 K
Light source:	LED not replaceable
Length:	321.00 mm
Height/Depth:	163.00 mm
Socket:	without
With light source:	yes
Operating device:	EVG
Nominal voltage:	100 to 277 V
Beam angle:	wide beam 41-80°
DALI dimming:	yes
Light color:	white
With operating device:	yes
Voltage type:	AC
Material of the housing:	aluminium
With protective cover:	yes
Reflector:	without
Ball-proof:	no
Luminaire with limited surface temperature 'D-mark':	yes
Color rendering index CRI:	80-89
Light distribution:	symmetrical
Suitable for secondary lamps:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming potentiometer (integrated in the device):	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	no
Light distributor:	without
Rated service life L70/B50 at 25 °C:	80000 h
Glow wire test according to IEC 60695-2-11:	850 °C - 30 s
Rated ambient temperature according to IEC62722-2-1:	-30 to 50 °C
Power factor:	0.95
Outer diameter:	321.00 mm
Wiring type:	Termination
Number of poles:	5

Characteristics

HABHB 155W/4000K 70DEG IP65

Manufacturer

HAN4058075543935

GTIN4058075543935

Type of wiringDiploma

Beam angleWide beam 41-80°

Outer diameter321.00 mm

Rated lifetime L70/B50 at 25 °C80000 hours

Rated luminous flux according to IEC 62722-2-122000lm

Rated ambient temperature according to IEC62722-2-1-30 to 50 °C

Operating deviceElectronic ballast

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALIYes

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature4000K

Color rendering index CRI80-89

VersionWithout

Housing colorBlack

Glow wire test according to IEC 60695-2-11850 °C - 30 s

Height/Depth163.00 mm

Power factor0.95

Luminaire with limited surface temperature D-markYes

LampsLED not replaceable

Light colorWhite

Light distributorWithout

Light distributionSymmetrical

Length321.00 mm

Max. system performance155.00W

With operating deviceYes

With light sourceYes

With protective coverYes

Nominal voltage100 to 277 V

Without dimming functionNo

Number of poles5

ReflectorWithout

Impact resistanceIK08

IP protection)IP65

Protection classI

Voltage typeAC

Housing materialAluminum
