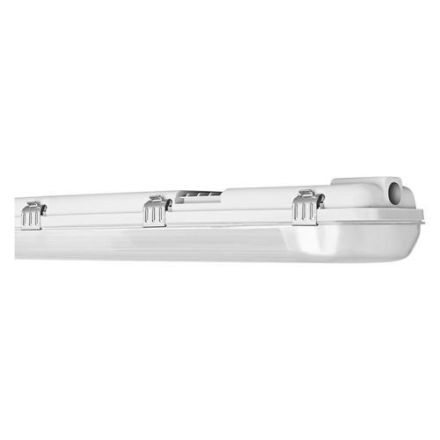

Damp-proof luminaires for T8 LED lamps. Product features: Luminaire housing, available for 1 or 2 T8 LED lamps. Protection class: IP65. Suitable for SubstiTUBE EM/UN and SubstiTUBE Connected. Product advantages: Pre-wired for easy installation of tubular AC LED lamps. Robust housing. Easy and quick installation. 5-year guarantee. Technical equipment: Required accessories included.
| Property | Value |
| Length: | 1561.00 mm |
| Width: | 103.00 mm |
| Height/Depth: | 75.00 mm |
| Protection rating (IP): | IP65 |
| Protection class: | I |
| Luminaire with limited surface temperature 'D-mark': | no |
| Nominal voltage: | 220 to 240 V |
| Housing colour: | grey |
| Material of the Housing: | Plastic |
| Impact resistance: | IK08 |
| Suitable for ceiling mounting: | yes |
| Voltage type: | AC |
| With motion detector: | no |
| With light source: | no |
| Rated ambient temperature according to IEC62722-2-1: | -20 to 45 °C |
| Connection type: | Screw terminal |
| With operating device: | yes |
| Cover material: | Plastic opal |
| Light distributor: | other |
| Without dimming function: | yes |
| Light emission: | direct |
| With light sensor: | no |
| Suitable for recessed mounting: | no |
| Suitable for computer workstations in accordance with EN 12464-1: | no |
| Suitable for light strip configuration: | no |
| Suitable for pendant suspension: | yes |
| Suitable for surface mounting: | yes |
| Suitable for Emergency light: | no |
| Design of the grid: | other |
| Covering of the light with thermal insulation material possible: | no |
| DMX dimming: | no |
| DSI dimming: | no |
| With air slots: | no |
| LineSwitch dimming: | no |
| Potentiometer dimming (integrated in the device): | no |
| 0-10 V dimming: | no |
| 1-10 dimming V: | no |
| Dimming manufacturer-specific: | no |
| Dimming DALI: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Glow wire test according to IEC 60695-2-11: | 650 °C - 30 s |
| Type of wiring: | suitable for through wiring |
| Number of poles: | 3 |
