LEDVANCE Osram DL ALU DN150 14W/300 DL ALU DN150 14W/3000K WT IP44

LEDVANCE Osram DL ALU DN150 14W/300 DL ALU DN150 14W/3000K WT IP44

In stock

SKU: 515712

Price on request

€28.97

€0

Overview

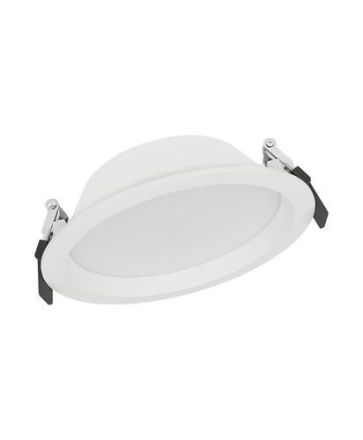

Downlight luminaires with aluminum housing. Product features: Diameter of the required ceiling cutout: 150 mm or 200 mm (depending on version). Protection class: IP44. Product advantages: High light output. Up to 60% energy savings (compared to luminaires that use compact fluorescent lamps). Very homogeneous light. Functional design. Easy installation with quick connection. External driver for increased flexibility (compatible with selected DALI drivers). 5-year guarantee. Areas of application: Direct replacement for luminaires with compact fluorescent lamps. General lighting. Public spaces. Stairwells. Corridors. Entrance areas. Shops.

Property	Value
Max. System power:	14.00 W
Rated luminous flux according to IEC 62722-2-1:	1190 lm
Housing color:	white
Housing material:	aluminum
Protection class (IP):	IP44
Outer diameter:	160.00 mm
Socket:	without
Light source:	LED not replaceable
Protection class:	II
With light source:	yes
Installation height/depth:	100 mm
With operating device:	yes
Suitable for recessed mounting:	yes
Length:	160.00 mm
Width:	160.00 mm
Height/depth:	52.00 mm
With motion detector:	no
Color temperature:	3000 K
Nominal voltage:	220 to 240 V
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Light distribution:	symmetrical
Operating device:	LED operating device, current-controlled
Impact resistance:	IK02
Luminaire with limited surface temperature 'D-mark':	no
Reflector:	without
Installation width:	150 mm
Installation length:	150 mm
Luminous flux:	1190 lm
Material of Cover:	transparent plastic
Covering of the light with thermal insulation material possible:	no
Voltage type:	AC
Light color:	white
Suitable for track mounting:	no
Adjustability:	not adjustable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for pedestal/floor mounting:	no
Suitable for truss mounting:	no
With light sensor:	no
Suitable for surface mounting:	yes
Suitable for cable system:	no
Surface:	powder-coated
Brushed surface:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (integrated in device):	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	yes
Light distributor:	diffuser lens/optics/panel
Light emission:	direct
Rated service life L70/B50 at 25 °C:	50000 h
Rated ambient temperature according to IEC62722-2-1:	-20 to 45 °C
Type of Wiring:	Termination
Power factor:	0.90
Number of poles:	2
Connection type:	Plug terminal
Luminous efficacy:	85 lm/W
Suitable for computer workstations according to EN 12464-1:	no
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
Photobiological safety according to EN 62471:	RG0
Color consistency (McAdam ellipse):	SDCM6

Characteristics

Manufacturer

HAN4058075091436

GTIN4058075091436

Covering the luminaire with thermal insulation material possibleNo

Connection typePlug-in terminal

Type of wiringDiploma

Outer diameter160.00 mm

Rated lifetime L70/B50 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-11190lm

Rated ambient temperature according to IEC62722-2-1-20 to 45 °C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Width160.00 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation width150 mm

Installation height/depth100 mm

Installation length150 mm

Color consistency (McAdam ellipse)SDCM6

Color temperature3000K

Color rendering index CRI80-89

VersionWithout

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for clamp mountingNo

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth52.00 mm

Power factor0.90

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy85lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux1190lm

Light distributorDiffuser lens/optics/panel

Light distributionSymmetrical

Length160.00 mm

Max. system performance14.00 W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage220 to 240 V

SurfacePowder coated

Brushed surfaceNo

Without dimming functionYes

Photobiological safety according to EN 62471RG0

Number of poles2

ReflectorWithout

Impact resistanceIK02

IP protection)IP44

Protection classII

Voltage typeAC

AdjustabilityNot adjustable

Cover materialPlastic transparent

Housing materialAluminum
