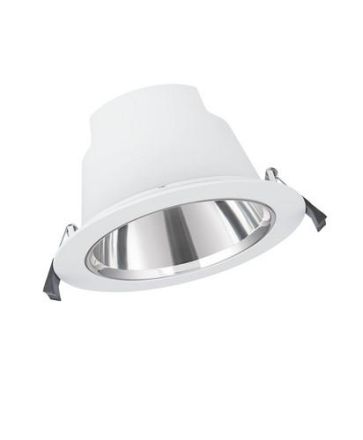

LEDVANCE Osram DL COMFORT DN155 18W DL COMFORT DN155 18W/3CCT 60DEG WT

LEDVANCE Osram DL COMFORT DN155 18W DL COMFORT DN155 18W/3CCT 60DEG WT

In stock

SKU: 515702

Price on request

€62.53

€0

Overview

Downlights with adjustable white light color. Product features: Three light colors adjustable using a slide switch. Protection class: IP54. Connection box with plug-in terminal for tool-free connection. Through-wiring possible. Product advantages: Three light colors in one light: warm white, cool white and daylight white. Easy installation thanks to integrated driver. Easy installation with quick connection. 5-year guarantee. Areas of application: Direct replacement for lights with compact fluorescent lamps. General lighting. Bathrooms, kitchens and covered outdoor areas. Offices. Hallways. Entrance areas. Shops. Stairwells.

Property	Value
Max. System power:	18.00 W
Rated luminous flux according to IEC 62722-2-1:	1040 lm
Housing color:	white
Housing material:	aluminum
Protection class (IP):	IP54
Outer diameter:	172.00 mm
Socket:	without
Light source:	LED not replaceable
Protection class:	I
With light source:	yes
Installation height/depth:	125 mm
With operating device:	yes
Suitable for recessed mounting:	yes
Length:	172.00 mm
Width:	172.00 mm
Height/depth:	95.00 mm
With motion detector:	no
Color temperature:	3000 to 5700 K
Nominal voltage:	100 to 277 V
Beam angle:	wide beam 41-80°
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Light distribution:	symmetrical
Operating device:	LED operating device current-controlled
Impact resistance:	IK03
Luminaire with limited surface temperature 'D-mark':	no
Reflector:	without
Installation width:	155.0 mm
Installation length:	155.0 mm
Luminous flux:	1040 to 1620 lm
Cover material:	transparent plastic
Covering of the luminaire with thermal insulation material possible:	no
Voltage type:	AC
Light color:	white
Suitable for track mounting:	no
Adjustability:	pivotable
Suitable for clamp mounting:	no
Suitable for Pendulum suspension:	no
Suitable for platform/floor mounting:	no
Suitable for truss mounting:	no
With light sensor:	no
Suitable for surface mounting:	yes
Suitable for cable system:	no
Surface:	powder-coated
Brushed surface:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (device-integrated):	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	yes
Light distributor:	diffuser lens/optics/panel
Light emission:	direct
Rated service life L70/B50 at 25 °C:	50000 h
Rated ambient temperature according to IEC62722-2-1:	-20 to 45 °C
Type of wiring:	suitable for through wiring
Power factor:	0.90
Number of poles:	2
Connection type:	Plug-in terminal
Luminaire luminous efficacy:	85 lm/W
Suitable for computer workstations according to EN 12464-1:	no
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
Photobiological safety according to EN 62471:	RG0

Characteristics

Manufacturer

HAN4058075104082

GTIN4058075104082

Covering the luminaire with thermal insulation material possibleNo

Connection typePlug-in terminal

Type of wiringSuitable for through wiring

Beam angleWide beam 41-80°

Outer diameter172.00 mm

Rated lifetime L70/B50 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-11040lm

Rated ambient temperature according to IEC62722-2-1-20 to 45 °C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Width172.00 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation width155.0 mm

Installation height/depth125 mm

Installation length155.0 mm

Color temperature3000 to 5700 K

Color rendering index CRI80-89

VersionWithout

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for clamp mountingNo

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth95.00 mm

Power factor0.90

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy85lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux1040 to 1620 lm

Light distributorDiffuser lens/optics/panel

Light distributionSymmetrical

Length172.00 mm

Max. system performance18.00 W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage100 to 277 V

SurfacePowder coated

Brushed surfaceNo

Without dimming functionYes

Photobiological safety according to EN 62471RG0

Number of poles2

ReflectorWithout

Impact resistanceIK03

IP protection)IP54

Protection classI

Voltage typeAC

AdjustabilitySwiveling

Cover materialPlastic transparent

Housing materialAluminum
