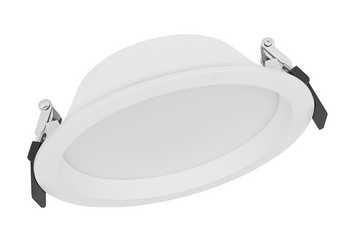

LEDVANCE Osram DOWNLIGHT ALU DOWNLIGHT ALU EMERGENCY DN150 14W 6500K

In stock
SKU: 516710
€106.47
Into a basketIn the basketGo

Overview

Downlight luminaires with aluminum housing and integrated emergency lighting function. Product features: Luminaire suitable for general lighting and emergency lighting. Validated according to European standards (EN 60598-1:2015, EN 60598-2-22:2014). Self-contained luminaires. Emergency lighting function: battery discharge time 3 h. Emergency lighting function test: automatic (AT). Battery technology: LiFePO4. Diameter of the required ceiling cutout: 150 mm or 200 mm (depending on version). Protection class: IP44. Product advantages: Seamless integration of luminaires with emergency lighting function into the general lighting. Simple wiring thanks to the included, pre-wired driver and battery for the emergency lighting function. Easy testing of the emergency lighting function thanks to the integrated automatic test function. Convenient visualization of the results of the automatic test with the included control LED. Operation of the emergency lighting function with a long-lasting LiFePO4 battery with a 3h operating discharge time. High light output in normal operation. Up to 60% energy savings compared to luminaires that use compact fluorescent lamps. Very homogeneous light. Functional design. Easy installation with quick connection. 3-year guarantee. Areas of application: Safety lighting for escape routes. Anti-panic lighting. Buildings that require 3-hour safety lighting. Direct replacement for luminaires with compact fluorescent lamps. General lighting. Public spaces. Corridors, stairwells, entrance areas. Shops. Technical equipment: Status indicator LED with holder for ceiling installation included in delivery.

PropertyValue
Max. System power:14 W
Color temperature:6500 K
Nominal voltage:240 V
Protection class (IP):IP44
Suitable for lamp power:14.00 W
With control gear:yes
Beam angle:free beam/diffuse
Housing material:aluminum
With light source:yes
Housing color:white
Installation height/depth:100 mm
Installation diameter:150 mm
Length:160.0 mm
Width:160.0 mm
Color rendering index CRI:80-89
Suitable for ceiling mounting:yes
Rated service life L80/B10 at 25 °C:45000 h
Height/depth:52.0 mm
Protection class:II
Light distribution:symmetrical
Operating device:LED operating device, current-controlled
Impact resistance:IK02
Light source:LED not replaceable
Outer diameter:160.0 mm
Luminaire with limited surface temperature 'D-mark':no
With motion detector:no
Reflector:other
Luminous flux:1330 lm
Cover material:Opal plastic
Covering the light with thermal insulation material possible:no
Voltage type:AC
Light color:white
Suitable for wall mounting:no
Suitable for track mounting:no
Adjustability:not adjustable
Suitable for clamp mounting:no
Suitable for pendulum suspension:no
Suitable for pedestal/floor mounting:no
Suitable for Traverse mounting:no
With light sensor:no
Suitable for surface mounting:no
Suitable for recessed mounting:yes
Suitable for cable system:no
Surface:powder-coated
Brushed surface:no
LED nominal current at constant current:100 mA
Dimming depending on operating device:no
Dimming 0-10 V:no
Dimming 1-10 V:no
Dimming DALI:no
Dimming DMX:no
Dimming DSI:no
Dimming potentiometer (device-integrated):no
Dimming GPRS:no
Dimming LineSwitch:no
Dimming manufacturer-specific:no
Dimming mains voltage modulation:no
Dimming trailing edge:no
Dimming leading edge:no
Dimming programmable:no
Dimming RF:no
Dimming Sine Wave Reduction:no
Dimming Touch and Dim:no
Dimming Zigbee:no
Dimming with push button:no
Without dimming function:yes
Light distributor:Diffuser lens/optics/panel
Light emission:direct
Total harmonic distortion (THD):19
Rated service life L70/B10 at 25 °C:50000 h
Rated service life L70/B50 at 25 °C:50000 h
Rated service life L80/B50 at 25 °C:45000 h
Rated service life L90/B10 at 25 °C:30000 h
Rated service life L90/B50 at 25 °C:30000 h
Rated ambient temperature according to IEC62722-2-1:+40 °C
Lamp luminous efficacy:95 lm/W
Type of wiring:Termination
Power factor:0.90
Number of poles:2
Connection type:other
Luminous efficacy:95 lm/W
Suitable for computer workstations according to EN 12464-1:no
Photobiological safety according to EN 62471:RG0
Colour consistency (McAdam ellipse):SDCM6

Characteristics

Rated service life L90/B10 at 25 °C30000 h
Rated service life L70/B10 at 25 °C50000 h
Rated service life L80/B50 at 25 °C45000 h
ManufacturerLEDVANCE Osram
HAN4058075204249
GTIN4058075204249
Covering the luminaire with thermal insulation material possibleNo
Connection typeOther
Type of wiringDiploma
Beam angleFree-radiating/diffuse
Outer diameter160.0 mm
Rated lifetime L70/B50 at 25 °C50000 hours
Rated lifetime L80/B10 at 25 °C45000 hours
Rated ambient temperature according to IEC62722-2-1+40°C
Operating deviceLED control gear current controlled
Suitable for computer workstations according to EN 12464-1No
Width160.0 mm
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALINo
Dimming DMXNo
Dimming DSINo
Dimming GPRSNo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeNo
Dimming phase controlNo
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming depends on the control gearNo
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableNo
Installation diameter150 mm
Installation height/depth100 mm
Color temperature6500K
Color rendering index CRI80-89
Suitable for surface mountingNo
Suitable for ceiling mountingYes
Suitable for flush mountingYes
Suitable for clamp mountingNo
Suitable for lamp power14.00 W
Suitable for pendulum suspensionNo
Suitable for podium/floor mountingNo
Suitable for rope systemNo
Suitable for busbar mountingNo
Suitable for truss mountingNo
Suitable for wall mountingNo
Housing colorWhite
Height/Depth52.0 mm
LED nominal current at constant current100mA
Lamp luminous efficacy95lm/W
Power factor0.90
Luminaire with limited surface temperature D-markNo
Luminaire luminous efficacy95lm/W
LampsLED not replaceable
Light emissionDirect
Light colorWhite
Luminous flux1330lm
Light distributorDiffuser lens/optics/panel
Light distributionSymmetrical
Length160.0 mm
Max. system performance14W
With operating deviceYes
With motion detectorNo
With light sourceYes
With light sensorNo
Nominal voltage240V
SurfacePowder coated
Brushed surfaceNo
Without dimming functionYes
Photobiological safety according to EN 62471RG0
Number of poles2
ReflectorOther
Impact resistanceIK02
Protection classII
Voltage typeAC
AdjustabilityNot adjustable
Cover materialPlastic opal
Housing materialAluminum
