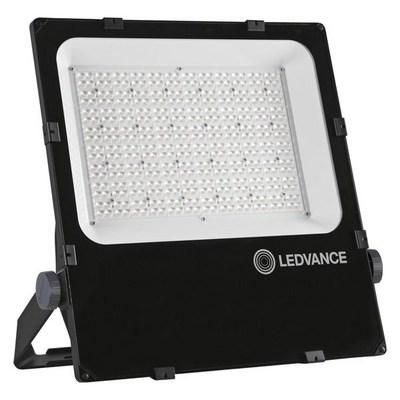

LEDVANCE Osram FL PFM 290W/3000K FLOODLIGHT ASYM 45x140 290 W 3000 K BK

In stock
SKU: 516873
€752.43
Into a basketIn the basketGo

Overview

Spotlight with very wide-beam, asymmetrical light distribution for area lighting. Product features: High light output: up to 140 lm/W. Asymmetrical light distribution for area lighting. Angled (45°) mounting bracket with rotation range of up to 180°. Protection class: IP66. Shock resistance: IK08. Ambient temperature range during operation: -30.+50 °C. High surge protection of up to 10 kV (L/N-PE), 6 kV (LN). Integrated climate membrane to prevent condensation inside the luminaire. Connection via cable (2 m), wiring required. Product advantages: Energy savings of up to 90% compared to halogen lamp floodlights. Up to 45% energy savings compared to luminaires that use conventional discharge lamps. Bright, robust and durable. Uniform luminance distribution and reduced glare. No light leakage in the upper half-space (ULOR 0%) at 0° inclination. Keyhole for particularly easy installation. 5-year guarantee. Areas of application: Direct replacement for luminaires that use HID lamps. Outdoor use (IP66). Parking lots. Public spaces. Industry. Sports facilities. Parking lots, industrial roads. D-mark according to EN 60598-2-24 for operating areas at risk of fire, e.g. due to accumulation of dust.

PropertyValue
Max. System power:290.00 W
Rated luminous flux according to IEC 62722-2-1:35300 lm
Housing color:black
Housing material:aluminum
Protection class (IP):IP66
Socket:without
Light source:LED not replaceable
Protection class:I
With light source:yes
With operating device:yes
Suitable for recessed mounting:no
Length:567.00 mm
Width:465.00 mm
Height/depth:97.00 mm
With motion detector:no
Color temperature:3000 K
Nominal voltage:220 to 240 V
Color rendering index CRI:80-89
Suitable for ceiling mounting:no
Light distribution:asymmetric
Operating device:EVG
Impact resistance:IK08
Luminaire with limited surface temperature 'D-mark':yes
Reflector:without
Luminous flux:35300 lm
Covering of the luminaire with thermal insulation material possible:no
Voltage type:AC
Light color:white
Suitable for track mounting:no
Adjustability:pivotable
Suitable for clamp mounting:no
Suitable for pendulum suspension:no
Suitable for platform/floor mounting:yes
Suitable for truss mounting:no
With light sensor:no
Suitable for surface mounting:yes
Suitable for cable system:no
Surface:powder-coated
Surface brushed:no
Dimming 0-10 V:no
Dimming 1-10 V:no
Dimming DALI:no
Dimming DMX:no
Dimming DSI:no
Dimming Potentiometer (device-integrated):no
Dimming LineSwitch:no
Dimming manufacturer-specific:no
Dimming Mains voltage modulation:no
Dimming trailing edge:no
Dimming leading edge:no
Dimming programmable:no
Dimming RF:no
Dimming Sine Wave Reduction:no
Dimming Touch and Dim:no
Dimming Zigbee:no
Dimming with push button:no
Without dimming function:yes
Light distributor:Focus lens
Light emission:direct
Rated service life L70/B50 at 25 °C:100000 h
Rated ambient temperature according to IEC62722-2-1:-30 to 50 °C
Type of wiring:Termination
Power factor:0.90
Number of poles:2
Connection type:Plug-in terminal
Luminaire luminous efficacy:120 lm/W
Suitable for computer workstations according to EN 12464-1:no
Glow wire test according to IEC 60695-2-11:650 °C - 30 s
Photobiological safety according to EN 62471:RG1
Colour consistency (McAdam ellipse):SDCM5

Characteristics

ManufacturerLEDVANCE Osram
HAN4058075353732
GTIN4058075353732
Covering the luminaire with thermal insulation material possibleNo
Connection typePlug-in terminal
Type of wiringDiploma
Rated lifetime L70/B50 at 25 °C100000 hours
Rated luminous flux according to IEC 62722-2-135300lm
Rated ambient temperature according to IEC62722-2-1-30 to 50 °C
Operating deviceElectronic ballast
Suitable for computer workstations according to EN 12464-1No
Width465.00 mm
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALINo
Dimming DMXNo
Dimming DSINo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeNo
Dimming phase controlNo
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableNo
Color consistency (McAdam ellipse)SDCM5
Color temperature3000K
Color rendering index CRI80-89
VersionWithout
Suitable for surface mountingYes
Suitable for ceiling mountingNo
Suitable for flush mountingNo
Suitable for clamp mountingNo
Suitable for pendulum suspensionNo
Suitable for podium/floor mountingYes
Suitable for rope systemNo
Suitable for busbar mountingNo
Suitable for truss mountingNo
Housing colorBlack
Glow wire test according to IEC 60695-2-11650 °C - 30 s
Height/Depth97.00 mm
Power factor0.90
Luminaire with limited surface temperature D-markYes
Luminaire luminous efficacy120lm/W
LampsLED not replaceable
Light emissionDirect
Light colorWhite
Luminous flux35300lm
Light distributorFocus lens
Light distributionAsymmetrical
Length567.00 mm
Max. system performance290.00W
With operating deviceYes
With motion detectorNo
With light sourceYes
With light sensorNo
Nominal voltage220 to 240 V
SurfacePowder coated
Brushed surfaceNo
Without dimming functionYes
Photobiological safety according to EN 62471RG1
Number of poles2
ReflectorWithout
Impact resistanceIK08
IP protection)IP66
Protection classI
Voltage typeAC
AdjustabilitySwiveling
Housing materialAluminum
