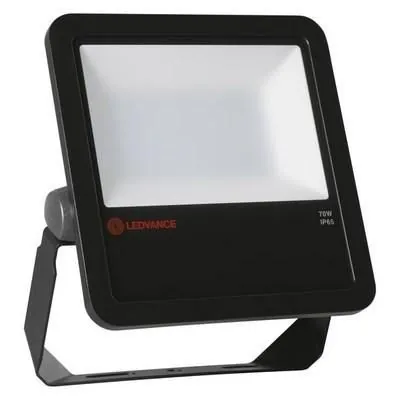

Floodlight with symmetrical light distribution with 70 W. Product features: Symmetrical beam angle: 100° x 100°. Luminaire luminous efficacy: up to 110 lm/W. Bevelled (30°) mounting bracket with rotation range of up to 180°. Protection class: IP65. Shock resistance: IK08. Ambient temperature range during operation: -20+50 °C. Connection via cable (1 m), wiring required. Product advantages: Matt cover made of tempered glass for uniform lighting. Weight and size optimization through compact design. No light leakage in the upper half space (ULOR 0%) at 0° inclination. Energy savings of up to 90% compared to halogen lamp floodlights. 5 year guarantee. Areas of application: Replacement for floodlights with halogen lamps. Garages. Public spaces. Illumination of facades. Construction sites. D-mark according to EN 60598-2-24 for operating areas at risk of fire, e.g. due to accumulation of dust.
| Property | Value |
| Max. System power: | 70 W |
| Rated luminous flux according to IEC 62722-2-1: | 7700 lm |
| Color temperature: | 4000 K |
| Nominal voltage: | 240 V |
| Protection class (IP): | IP65 |
| With control gear: | yes |
| Beam angle: | unshielded/diffuse |
| Housing material: | aluminum |
| With light source: | yes |
| Housing color: | black |
| Length: | 250.0 mm |
| Width: | 240.0 mm |
| Color rendering index CRI: | 80-89 |
| Suitable for ceiling mounting: | no |
| Height/depth: | 70.0 mm |
| Protection class: | I |
| Operating device: | EVG |
| Impact resistance: | IK08 |
| Light source: | LED not replaceable |
| Luminaire with limited surface temperature 'D-mark': | no |
| With motion detector: | no |
| Reflector: | without |
| Luminous flux: | 7700 lm |
| Cover material: | opal glass |
| Covering of the light with thermal insulation material possible: | no |
| Voltage type: | AC |
| Light color: | white |
| Suitable for wall mounting: | yes |
| Suitable for track mounting: | no |
| Adjustability: | pivotable |
| Suitable for clamp mounting: | no |
| Suitable for pendulum suspension: | no |
| Suitable for platform/floor mounting: | yes |
| Suitable for traverse mounting: | no |
| With light sensor: | no |
| Suitable for surface mounting: | yes |
| Suitable for recessed mounting: | no |
| Suitable for cable system: | no |
| Surface: | powder-coated |
| Brushed surface: | no |
| LED nominal current at constant current: | 320 mA |
| Dimming depending on operating device: | no |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming DALI: | no |
| Dimming DMX: | no |
| Dimming DSI: | no |
| Dimming Potentiometer (device integrated) : | no |
| Dimming GPRS: | no |
| Dimming LineSwitch: | no |
| Dimming manufacturer-specific: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Without dimming function: | yes |
| Light distributor: | Reflector |
| Light emission: | direct |
| Energy efficiency class of the built-in light source: | - |
| Total harmonic distortion (THD): | 19 |
| Rated ambient temperature according to IEC62722-2-1: | +50 °C |
| Lamp luminous efficacy: | 110 lm/W |
| Wiring type: | Termination |
| Power factor: | 0.90 |
| Number of poles: | 2 |
| Connection type: | other |
| Luminous efficacy: | 110 lm/W |
| Suitable for computer workstations in accordance with EN 12464-1: | no |
| Photobiological safety in accordance with EN 62471: | RG0 |
| Color consistency (McAdam ellipse) : | SDCM5 |
