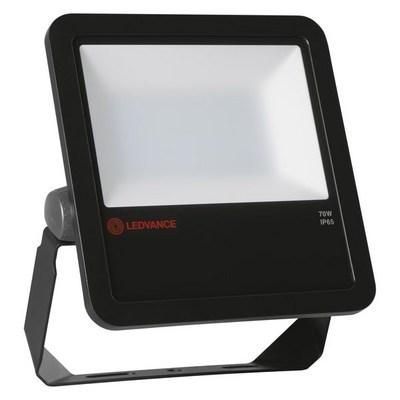

LEDVANCE Osram FLOOD LED 70W/6500K FLOODLIGHT 70 70 W 6500 K IP65 BK

LEDVANCE Osram FLOOD LED 70W/6500K FLOODLIGHT 70 70 W 6500 K IP65 BK

In stock

SKU: 516846

Price on request

€157.04

€0

Overview

Floodlight with symmetrical light distribution with 70 W. Product features: Symmetrical beam angle: 100° x 100°. Luminaire luminous efficacy: up to 110 lm/W. Bevelled (30°) mounting bracket with rotation range of up to 180°. Protection class: IP65. Shock resistance: IK08. Ambient temperature range during operation: -20+50 °C. Connection via cable (1 m), wiring required. Product advantages: Matt cover made of tempered glass for uniform lighting. Weight and size optimization through compact design. No light leakage in the upper half space (ULOR 0%) at 0° inclination. Energy savings of up to 90% compared to halogen lamp floodlights. 5 year guarantee. Areas of application: Replacement for floodlights with halogen lamps. Garages. Public spaces. Illumination of facades. Construction sites. D-mark according to EN 60598-2-24 for operating areas at risk of fire, e.g. due to accumulation of dust.

Property	Value
Max. System power:	70 W
Rated luminous flux according to IEC 62722-2-1:	7700 lm
Color temperature:	6500 K
Nominal voltage:	240 V
Protection class (IP):	IP65
With control gear:	yes
Beam angle:	unshielded/diffuse
Housing material:	aluminum
With light source:	yes
Housing color:	black
Length:	250.0 mm
Width:	240.0 mm
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	no
Height/depth:	70.0 mm
Protection class:	I
Operating device:	EVG
Impact resistance:	IK08
Light source:	LED not replaceable
Luminaire with limited surface temperature 'D-mark':	no
With motion detector:	no
Reflector:	without
Luminous flux:	7700 lm
Cover material:	opal glass
Covering of the light with thermal insulation material possible:	no
Voltage type:	AC
Light color:	white
Suitable for wall mounting:	yes
Suitable for track mounting:	no
Adjustability:	pivotable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for platform/floor mounting:	yes
Suitable for traverse mounting:	no
With light sensor:	no
Suitable for surface mounting:	yes
Suitable for recessed mounting:	no
Suitable for cable system:	no
Surface:	powder-coated
Brushed surface:	no
LED nominal current at constant current:	320 mA
Dimming depending on operating device:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming Potentiometer (device integrated) :	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	yes
Light distributor:	Reflector
Light emission:	direct
Energy efficiency class of the built-in light source:	-
Total harmonic distortion (THD):	19
Rated ambient temperature according to IEC62722-2-1:	+50 °C
Lamp luminous efficacy:	110 lm/W
Wiring type:	Termination
Power factor:	0.90
Number of poles:	2
Connection type:	other
Luminous efficacy:	110 lm/W
Suitable for computer workstations in accordance with EN 12464-1:	no
Photobiological safety in accordance with EN 62471:	RG0
Color consistency (McAdam ellipse) :	SDCM5

Characteristics

Energy efficiency class of the permanently installed light source-

Manufacturer

HAN4058075251359

GTIN4058075251359

Covering the luminaire with thermal insulation material possibleNo

Connection typeOther

Type of wiringDiploma

Beam angleFree-radiating/diffuse

Rated luminous flux according to IEC 62722-2-17700lm

Rated ambient temperature according to IEC62722-2-1+50°C

Operating deviceElectronic ballast

Suitable for computer workstations according to EN 12464-1No

Width240.0 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature6500K

Color rendering index CRI80-89

Suitable for surface mountingYes

Suitable for ceiling mountingNo

Suitable for flush mountingNo

Suitable for clamp mountingNo

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingYes

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Suitable for wall mountingYes

Housing colorBlack

Height/Depth70.0 mm

LED nominal current at constant current320mA

Lamp luminous efficacy110lm/W

Power factor0.90

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy110lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux7700lm

Light distributorReflector

Length250.0 mm

Max. system performance70W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage240V

SurfacePowder coated

Brushed surfaceNo

Without dimming functionYes

Photobiological safety according to EN 62471RG0

Number of poles2

ReflectorWithout

Impact resistanceIK08

Protection classI

Voltage typeAC

AdjustabilitySwiveling

Cover materialGlass opal

Housing materialAluminum

LEDVANCE Osram FLOOD LED 70W/6500K FLOODLIGHT 70 70 W 6500 K IP65 BK
