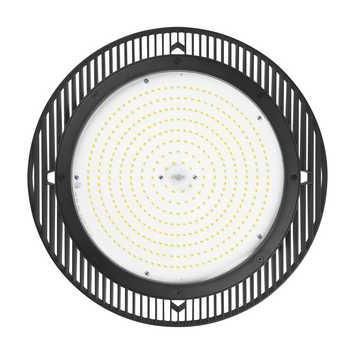

LEDVANCE Osram HB DALI 155W/4000K HB DALI 155W/4000K 115DEG IP65

LEDVANCE Osram HB DALI 155W/4000K HB DALI 155W/4000K 115DEG IP65

In stock

SKU: 515736

Price on request

€511.81

€0

Overview

LED hall lights with DALI interface. Product features: Preset DALI driver included. Light output: up to 140 lm/W. Protection class: IP65. Product advantages: High compatibility thanks to DALI-2 validation. DALI 2.0 interface for use with dimmers and sensors. Low-flicker light thanks to special electronic ballast. High light output. Simple electrical connection thanks to push-button connection terminal. Up to 90% energy savings compared to conventional hall mirror lights. 5-year guarantee. Areas of application: Replacement for hall mirror lights with mercury vapor or metal halide lamps. Warehouses. Logistics halls. Industry. High ceilings (e.g. in shopping centers, airports, commercial buildings, lobbies). Technical equipment: Mounting ring included. Mounting bracket and reflector available as separate accessories.

Property	Value
Light source:	LED not replaceable
Color temperature:	4000 K
Rated luminous flux according to IEC 62722-2-1:	22000 lm
Height/depth:	131.0 mm
With light source:	yes
Operating device:	EVG
Protection class:	I
Protection class (IP) :	IP65
Impact resistance:	IK08
Housing color:	black
Rated voltage:	240 V
Max. System power:	155 W
Light color:	white
With control gear:	yes
Voltage type:	AC
Suitable for emergency lighting:	no
Housing material:	aluminum
Mounting type:	surface-mounted
With protective cover:	yes
Ball-proof:	no
Luminaire with limited surface temperature 'D-mark':	no
Color rendering index CRI:	80-89
Light distribution:	symmetrical
Suitable for secondary lamps:	no
LED nominal current at constant current:	690 mA
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	yes
Dimming DMX:	no
Dimming DSI:	no
Dimming trailing edge:	no
Dimming phase control:	no
Dimming potentiometer (integrated in device):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	no
Light distributor:	without
Beam angle:	extremely wide beam >,80°
Energy efficiency class of the permanently installed light source:	G
Rated ambient temperature according to IEC62722-2-1:	+50 °C
Outer diameter:	360.0 mm
Wiring type:	suitable for through wiring
Number of poles:	5
Connection type:	other

Characteristics

Manufacturer

HAN4058075130678

GTIN4058075130678

Connection typeOther

Type of wiringSuitable for through wiring

Beam angleExtremely wide beam >80°

Outer diameter360.0 mm

Rated luminous flux according to IEC 62722-2-122000lm

Rated ambient temperature according to IEC62722-2-1+50°C

Operating deviceElectronic ballast

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALIYes

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature4000K

Color rendering index CRI80-89

Suitable for emergency lightingNo

Housing colorBlack

Height/Depth131.0 mm

LED nominal current at constant current690mA

Luminaire with limited surface temperature D-markNo

LampsLED not replaceable

Light colorWhite

Light distributorWithout

Light distributionSymmetrical

Max. system performance155W

With operating deviceYes

With light sourceYes

With protective coverYes

Mounting typeCultivation

Nominal voltage240V

Without dimming functionNo

Number of poles5

Impact resistanceIK08

Protection classI

Voltage typeAC

Housing materialAluminum
