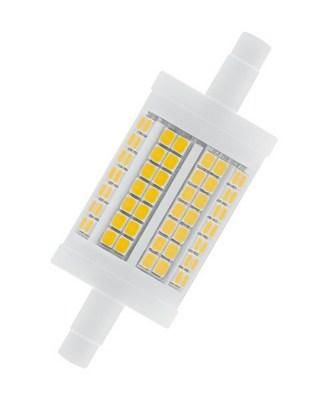

LEDVANCE Osram LEDPLI78 100 11 LED PLI78 100 11,5W/827 230V R7S

LEDVANCE Osram LEDPLI78 100 11 LED PLI78 100 11,5W/827 230V R7S

In stock

SKU: 516662

Price on request

€20.45

€0

Overview

Special LED lamps with double-ended bases. Product features: LED alternative to conventional R7s lamps. Product advantages: Long service life of up to 15,000 hours. Low energy consumption. Four-year guarantee. Good all-round light emission. Fits in most R7s lamps thanks to off-centre bases. Areas of application: Hospitality. Household applications. Outdoor applications only in suitable lamps.

Property	Value
Lamp wattage:	11.50 W
Color temperature:	2700 K
Rated luminous flux according to IEC 62722-2-1:	1521 lm
Socket:	R7s
Lamp shape:	linear
Energy efficiency class:	E
Glass/cover design:	clear
Nominal voltage:	240 V
Voltage type:	AC
Diameter:	28.0 mm
Length:	78.0 mm
Dimmable:	no
Weighted energy consumption in 1,000 hours:	12 kWh
Color:	white
Color rendering index CRI:	80-89
Protection class (IP):	IP20
With remote control:	no
Average nominal service life:	15000 h
Nominal current:	55 mA
Power factor:	0.50
Luminous flux:	1521 lm
Lamp luminous efficacy:	132 lm/W
Filament lamp:	no
Light color according to EN 12464-1:	warm white <,3300 K
Light color:	827
Housing color:	white
Beam angle:	360.00 °
Colour consistency (McAdam ellipse) :	SDCM6
Energy efficiency index (EEI) :	0.10
Min. number of switching operations:	100000
Remote control possible:	no

Characteristics

Manufacturer

HAN4058075169029

GTIN4058075169029

Glass/cover designClear

Beam angle360.00°

Rated luminous flux according to IEC 62722-2-11521lm

DimmableNo

Diameter28.0 mm

Energy efficiency classE

Color

Color temperature2700K

Color rendering index CRI80-89

Remote control possibleNo

Filament lampNo

Housing colorWhite

Weighted energy consumption in 1,000 hours12 kWh

Lamp shapeLinear

Lamp power11.50W

Lamp luminous efficacy132lm/W

Power factor0.50

Light color827

Light colour according to EN 12464-1Warm white <,3300 K

Luminous flux1521lm

Length78.0 mm

Min. number of switching operations100000

With remoteNo

Average nominal life15000 hours

Nominal voltage240V

Rated current55mA

BaseR7s

Voltage typeAC
