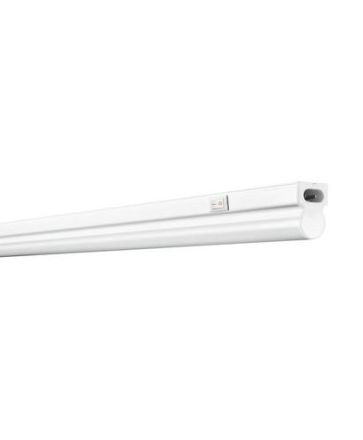

LEDVANCE Osram LINEARLED1200 LED surface-mounted luminaire 14W 4,000 K

In stock
SKU: 516151
€15.18
Into a basketIn the basketGo

Overview

Compact luminaire with switch for single or strip light applications. Product features: Built-in switch. Up to 10 luminaires can be connected to one another. Transparent end caps. Versions with luminous flux of 400,1900 lm available. 5 different lengths available. High luminous efficacy: up to 112 lm/W. Glow wire test according to IEC 60695-2-12: 850 °C. Product advantages: Compact dimensions. Requires little space thanks to the compact dimensions. Seamless connection option with up to 10 luminaires per strip light installation. Practical switch installed directly on the luminaire. Low-flicker light thanks to special electronic ballast. Flexible installation at 2 different angles thanks to 2 fastening options. Flexible application thanks to a wide range of available lengths from 300 to 1500 mm. Angle connection possible with the included cable. Areas of application: Direct replacement for luminaires with fluorescent lamps. Indoor applications. Corridors, entrance areas, stairwells, living rooms, basements. Accent lighting. Public space. Cove lighting. Shelves, furniture integration or substructure. Seamless light strips. Technical equipment: Equipped with power plug, cable connector and line connector for connecting additional lights. Mounting material for wall and ceiling mounting included.

PropertyValue
Max. System power:14.00 W
Nominal voltage:220 to 240 V
Rated luminous flux according to IEC 62722-2-1:1400 lm
Color temperature:4000 K
With control gear:yes
With light source:yes
Width:28.00 mm
Length:1173.00 mm
Socket:without
Housing color:white
Operating device:EVG
Protection type (IP):IP20
Protection class:II
Light source:LED not replaceable
Electrical connection with plug-in system:no
With switch:yes
Material:Plastic
Luminaire with limited surface temperature 'D-mark':no
Covering of the luminaire with thermal insulation material possible:no
Suitable for emergency lighting:no
Voltage type:AC
Color rendering index CRI:80-89
Dimming 0-10 V:no
Dimming 1-10 V:no
Dimming DALI:no
Dimming DMX:no
Dimming DSI:no
Dimming potentiometer (integrated in the device):no
Dimming LineSwitch:no
Dimming manufacturer-specific:no
Dimming mains voltage modulation:no
Dimming trailing edge:no
Dimming leading edge:no
Dimming programmable:no
Dimming RF:no
Dimming Sine Wave Reduction:no
Dimming Touch and Dim:no
Dimming Zigbee:no
Dimming with Push button:no
Without dimming function:yes
Light distributor:Diffuser lens/optics/panel
Rated service life L70/B50 at 25 °C:50000 h
Glow wire test according to IEC 60695-2-11:850 °C - 30 s
With motion detector:no
Power factor:0.5
Height/depth:36.00 mm
Type of Wiring:with through wiring
Number of poles:2
Connection type:screw terminal

Characteristics

With switchYes
ManufacturerLEDVANCE Osram
HAN4058075106178
GTIN4058075106178
Covering the luminaire with thermal insulation material possibleNo
Connection typeScrew terminal
Type of wiringWith through wiring
Rated lifetime L70/B50 at 25 °C50000 hours
Rated luminous flux according to IEC 62722-2-11400lm
Operating deviceElectronic ballast
Width28.00 mm
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALINo
Dimming DMXNo
Dimming DSINo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeNo
Dimming phase controlNo
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableNo
Electrical connection with plug-in systemNo
Color temperature4000K
Color rendering index CRI80-89
VersionWithout
Suitable for emergency lightingNo
Housing colorWhite
Glow wire test according to IEC 60695-2-11850 °C - 30 s
Height/Depth36.00 mm
Power factor0.5
Luminaire with limited surface temperature D-markNo
LampsLED not replaceable
Light distributorDiffuser lens/optics/panel
Length1173.00 mm
Max. system performance14.00 W
With operating deviceYes
With motion detectorNo
With light sourceYes
Nominal voltage220 to 240 V
Without dimming functionYes
Number of poles2
IP protection)IP20
Protection classII
Voltage typeAC
MaterialPlastic
