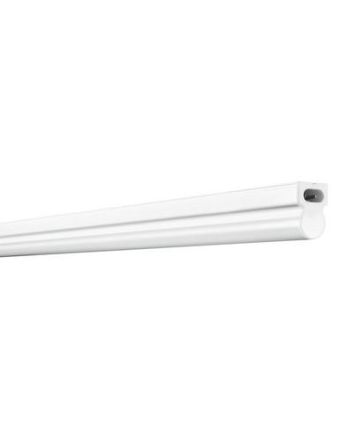

LEDVANCE Osram LINEARLED600POWER LED surface-mounted luminaire 10W 3,000 K

In stock
SKU: 516154
€26.21
Into a basketIn the basketGo

Overview

Compact luminaire with high luminous flux for single or strip applications. Product features: Replacement for conventional T8 or T5 luminaires. Up to 10 luminaires can be connected to one another. Transparent end caps. Linear Compact Batten can be connected at the beginning of the strip with wiring on the back. Versions with luminous flux 1000,2500 lm available. 4 different lengths available. High luminous efficacy: up to 100 lm/W. Glow wire test according to IEC 60695-2-12: 850 °C. Product advantages: Compact dimensions. Requires little space thanks to the compact dimensions. Seamless connection option with up to 10 luminaires per strip installation. High luminous flux up to 2500 lm. Seamless connection without visible cables when combined with Linear Compact Batten. Low-flicker light thanks to special electronic ballast. Angle connection possible with enclosed cable. Flexible installation in 2 different angles thanks to 2 fastening options. Flexible application thanks to a wide range of available lengths from 600 to 1500 mm. 5-year guarantee. Areas of application: Direct replacement for luminaires with fluorescent lamps. Indoor applications. Corridors, entrance areas, stairwells, living rooms, basements. Accent lighting. Public spaces. Cove lighting. Shelves, furniture integration or substructure. Seamless light strips. Technical equipment: Equipped with power plug, cable connector and line connector for connecting additional luminaires. Mounting material for wall and ceiling mounting included.

PropertyValue
Max. System power:10.00 W
Nominal voltage:220 to 240 V
Rated luminous flux according to IEC 62722-2-1:1000 lm
Color temperature:3000 K
With control gear:yes
With light source:yes
Width:24.00 mm
Length:573.00 mm
Socket:without
Housing color:white
Operating device:EVG
Protection type (IP):IP20
Protection class:II
Light source:LED not replaceable
Electrical connection with plug-in system:no
With switch:no
Material:Plastic
Luminaire with limited surface temperature 'D-mark':no
Covering of the luminaire with thermal insulation material possible:no
Suitable for emergency lighting:no
Voltage type:AC
Color rendering index CRI:80-89
Dimming 0-10 V:no
Dimming 1-10 V:no
Dimming DALI:no
Dimming DMX:no
Dimming DSI:no
Dimming potentiometer (integrated in the device):no
Dimming LineSwitch:no
Dimming manufacturer-specific:no
Dimming mains voltage modulation:no
Dimming trailing edge:no
Dimming leading edge:no
Dimming programmable:no
Dimming RF:no
Dimming Sine Wave Reduction:no
Dimming Touch and Dim:no
Dimming Zigbee:no
Dimming with Push button:no
Without dimming function:yes
Light distributor:Diffuser lens/optics/panel
Rated service life L70/B50 at 25 °C:50000 h
Glow wire test according to IEC 60695-2-11:850 °C - 30 s
With motion detector:no
Power factor:0.5
Height/depth:36.00 mm
Type of Wiring:with through wiring
Number of poles:3
Connection type:screw terminal

Characteristics

With switchNo
ManufacturerLEDVANCE Osram
HAN4058075106277
GTIN4058075106277
Covering the luminaire with thermal insulation material possibleNo
Connection typeScrew terminal
Type of wiringWith through wiring
Rated lifetime L70/B50 at 25 °C50000 hours
Rated luminous flux according to IEC 62722-2-11000lm
Operating deviceElectronic ballast
Width24.00 mm
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALINo
Dimming DMXNo
Dimming DSINo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeNo
Dimming phase controlNo
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableNo
Electrical connection with plug-in systemNo
Color temperature3000K
Color rendering index CRI80-89
VersionWithout
Suitable for emergency lightingNo
Housing colorWhite
Glow wire test according to IEC 60695-2-11850 °C - 30 s
Height/Depth36.00 mm
Power factor0.5
Luminaire with limited surface temperature D-markNo
LampsLED not replaceable
Light distributorDiffuser lens/optics/panel
Length573.00 mm
Max. system performance10.00 W
With operating deviceYes
With motion detectorNo
With light sourceYes
Nominal voltage220 to 240 V
Without dimming functionYes
Number of poles3
IP protection)IP20
Protection classII
Voltage typeAC
MaterialPlastic
