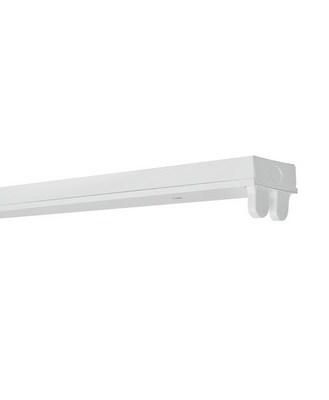

LEDVANCE Osram LN HOUSING 1200 2X LINEAR HOUSING T8 LED 1200 2xTUBE

LEDVANCE Osram LN HOUSING 1200 2X LINEAR HOUSING T8 LED 1200 2xTUBE

In stock

SKU: 516543

Price on request

€14.88

€0

Overview

Metal housing for T8 LED retrofit lamps. Product features: Metal housing for T8 LED lamps (G13 base). Direct operation with 230 V mains voltage. Versions for one or two lamps available. Through-wiring possible. Connection via included plug-in terminal. Product advantages: Simple and flexible exchangeability of the T8 LED retrofit lamps. No risk of failure due to swapping the connections of LED retrofit lamps. Connection via the back or via through-wiring. Easy connection thanks to plug-in terminal. Requires little space thanks to its compact dimensions.

Property	Value
Nominal voltage:	240 V
With operating device:	yes
With light source:	no
Width:	83.0 mm
Length:	1234 mm
Socket:	G13
Housing color:	white
Suitable for number of light sources:	2
Operating device:	EVG
Protection class (IP) :	IP20
Protection class:	I
Electrical connection with plug-in system:	yes
With switch:	no
Material:	steel
Luminaire with limited surface temperature 'D-mark':	no
Covering of the luminaire with thermal insulation material possible:	yes
Suitable for emergency lighting:	no
Voltage type:	AC
Dimming 0-10 V:	no
Dimming 1-10 V:	no
DALI dimming:	no
DMX dimming:	no
DSI dimming:	no
Potentiometer dimming (device-integrated):	no
GPRS dimming:	no
LineSwitch dimming:	no
Manufacturer-specific dimming:	no
Mains voltage modulation dimming:	no
Phase control dimming:	no
Phase control dimming:	no
Programmable dimming:	no
RF dimming:	no
Sine Wave Reduction dimming:	no
Touch and Dim dimming:	no
Zigbee dimming:	no
Push button dimming:	no
Without dimming function:	yes
Light distributor:	without
Highest energy efficiency class of the replaceable Lamp:	A
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
With motion detector:	no
Suitable for lamp power:	32 W
Height/depth:	66.0 mm
Type of wiring:	suitable for through wiring
Number of poles:	2
Connection type:	other

Characteristics

With switchNo

Manufacturer

HAN4058075144422

GTIN4058075144422

Covering the luminaire with thermal insulation material possibleYes

Connection typeOther

Type of wiringSuitable for through wiring

Operating deviceElectronic ballast

Width83.0 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Electrical connection with plug-in systemYes

VersionG13

Suitable for lamp power32W

Suitable for number of lamps2

Suitable for emergency lightingNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth66.0 mm

Luminaire with limited surface temperature D-markNo

Light distributorWithout

Length1234 mm

With operating deviceYes

With motion detectorNo

With light sourceNo

Nominal voltage240V

Without dimming functionYes

Number of poles2

Protection classI

Voltage typeAC

MaterialSteel
