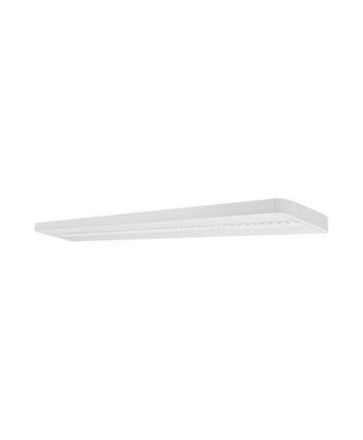

LEDVANCE Osram LN INDV D 1200 34W LN INDV D 1200 34W/3000K

LEDVANCE Osram LN INDV D 1200 34W LN INDV D 1200 34W/3000K

In stock

SKU: 515897

Price on request

€209.07

€0

Overview

Surface-mounted luminaire for single or strip applications. Product features: Each LED with individual lens and reflector for UGR < 16 and homogeneous light distribution. Suspended installation with suspension set. Can be connected to a seamless strip using a mechanical connector (when surface-mounted or suspended). Versions with a length of 1200 or 1500 mm available. Luminous flux up to 5700 lm. Luminous efficacy: up to 125 lm/W. Initial color consistency: 3 SDCM (threshold unit). Glow wire test according to IEC 60695-2-12: 850 °C. Versions with CRI 90 available. Luminaire versions with IoT-capable DALI-2 driver or Zigbee 3.0 technology available. Service life (L70/B50): 60,000 h (at 25 °C). Product advantages: Homogeneous light distribution and reduced glare thanks to the IndiviLED® optics. Various mounting options. The product family offers comprehensive solutions for a wide range of applications. Up to 50% energy savings compared to T5 light strips. Other variants with DALI electronic ballast, emergency lighting function in accordance with IEC 60598-2-22 or through-wiring also available. Robust housing with IK06. Low-flicker light thanks to special electronic ballast. 5-year guarantee. Application areas: Direct replacement for luminaires with fluorescent lamps. Offices, schools. General interior lighting. Corridors, entrance areas. Seamless light strips. Shop lighting. Technical equipment: Ceiling connection box available. Suspension set available. Mechanical connector available. Through-wiring set available.

Property	Value
Max. System power:	34.00 W
Rated luminous flux according to IEC 62722-2-1:	3800 lm
Length:	1199.00 mm
Width:	120.00 mm
Height/depth:	40.00 mm
Protection class (IP):	IP20
Protection class:	I
Luminaire with limited surface temperature 'D-mark':	no
Nominal voltage:	220 to 240 V
Housing color:	white
Housing material:	aluminum
Color temperature:	3000 K
Impact resistance:	IK06
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Voltage type:	AC
With motion detector:	no
Beam angle:	wide beam 41-80°
With light source:	yes
Light source:	LED not replaceable
Rated ambient temperature according to IEC62722-2-1:	-20 to 45 °C
Connection type:	Plug-in terminal
With control gear:	yes
Light distributor:	Focus lens
Without dimming function:	yes
Light emission:	direct
With light sensor:	no
Control gear:	EVG
Suitable for recessed mounting:	no
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	yes
Suitable for strip light configuration:	no
Suitable for pendant suspension:	yes
Suitable for surface mounting:	yes
Suitable for emergency lighting:	no
Design of the grid:	matt
Covering of the luminaire with thermal insulation material possible:	no
Dimming DMX:	no
Dimming DSI:	no
With air slots:	no
Dimming LineSwitch:	no
Dimming potentiometer (device-integrated):	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Phase control dimming:	no
Programmable dimming:	no
RF dimming:	no
Sine wave reduction dimming:	no
Touch and dim dimming:	no
Zigbee dimming:	no
Push button dimming:	no
Rated service life L70/B50 at 25 °C:	60000 h
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
Luminaire luminous efficacy:	110 lm/W
Power factor:	0.90
Type of wiring:	suitable for through wiring
Number of poles:	2

Characteristics

Manufacturer

HAN4058075109605

GTIN4058075109605

Covering the luminaire with thermal insulation material possibleNo

Connection typePlug-in terminal

Type of wiringSuitable for through wiring

Execution of the gridFrosted

Beam angleWide beam 41-80°

Rated lifetime L70/B50 at 25 °C60000 hours

Rated luminous flux according to IEC 62722-2-13800lm

Rated ambient temperature according to IEC62722-2-1-20 to 45 °C

Operating deviceElectronic ballast

Suitable for computer workstations according to EN 12464-1Yes

Width120.00 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature3000K

Color rendering index CRI80-89

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionYes

Housing colorWhite

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth40.00 mm

Power factor0.90

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy110lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Light distributorFocus lens

Length1199.00 mm

Max. system performance34.00W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage220 to 240 V

Without dimming functionYes

Number of poles2

Impact resistanceIK06

IP protection)IP20

Protection classI

Voltage typeAC

Housing materialAluminum
