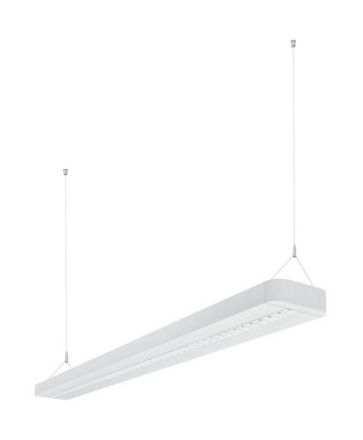

LEDVANCE Osram LN INDV D/I DALI 120 LINEAR IndiviLED DI/IN DALI 1200 4000K

In stock
SKU: 516508
€329.98
Into a basketIn the basketGo

Overview

Suspended luminaire for single or strip applications. Product features: Each LED with individual lens and reflector for UGR < 16 and homogeneous light distribution. Indirect lighting with 850 lm. Suspended installation with suspension set. Can be connected to a seamless strip using a mechanical connector (for surface or suspended installation). Versions with a length of 1200 or 1500 mm available. Luminous flux up to 6550 lm. Luminous efficacy: up to 120 lm/W. Initial color consistency: 3 SDCM (threshold unit). Glow wire test according to IEC 60695-2-12: 850 °C. Service life (L70/B50): 60,000 h (at 25 °C). Product advantages: Homogeneous light distribution and reduced glare thanks to the IndiviLED® optics. Increased lighting comfort with direct and indirect beam characteristics. The product family offers comprehensive solutions for a wide range of applications. Up to 50% energy savings compared to T5 light strips. Robust housing with IK06. Versions with DALI electronic ballast available. 5-year guarantee. Application areas: Direct replacement for luminaires with fluorescent lamps. Offices, schools. General interior lighting. Corridors, entrance areas. Seamless light strips. Shop lighting. Technical equipment: Ceiling connection box available. Suspension set available. Mechanical connector available. Through-wiring set available.

PropertyValue
Max. System power:42.00 W
Rated luminous flux according to IEC 62722-2-1:5050 lm
Color temperature:4000 K
Length:1199.00 mm
Width:120.00 mm
Socket:without
Height/Depth:40.00 mm
Protection class (IP):IP20
Protection class:I
Pendant length:1500 mm
Material of the housing:aluminium
Suitable for computer workstations in accordance with EN 12464-1:yes
With light source:yes
With operating device:yes
Nominal voltage:220 to 240 V
Suspension included:no
Light source:LED not replaceable
Housing color:white
Design of the Grid:other
Reflector:without
Suitable for light strip configuration:no
Direct/indirect components separately adjustable:no
Light distribution:symmetrical
Light emission:direct/indirect
Impact resistance:IK06
Luminaire with limited surface temperature 'D-mark':no
Color rendering index CRI:80-89
Suitable for emergency lighting:no
Light color:white
Voltage type:AC
Dimming 0-10 V:no
Dimming 1-10 V:no
Dimming DALI:yes
Dimming DMX:no
Dimming programmable:no
Dimming DSI:no
Dimming RF:no
Dimming potentiometer (device integrated):no
Dimming LineSwitch:no
Dimming manufacturer-specific:no
Dimming mains voltage modulation:no
Dimming trailing edge:no
Dimming leading edge:no
Dimming Sine Wave Reduction:no
Dimming Touch and Dim:no
Dimming Zigbee:no
Dimming with push button:no
Without dimming function:no
Light distributor:Focus lens
Glow wire test according to IEC 60695-2-11:650 °C - 30 s
Power factor:0.90
Rated service life L70/B50 at 25 °C:60000 h
Type of wiring:suitable for through wiring
Number of poles:4
Connection type:Plug-in terminal

Characteristics

ManufacturerLEDVANCE Osram
HAN4058075109025
GTIN4058075109025
Suspension includedNo
Connection typePlug-in terminal
Type of wiringSuitable for through wiring
Execution of the gridOther
Rated lifetime L70/B50 at 25 °C60000 hours
Rated luminous flux according to IEC 62722-2-15050lm
Suitable for computer workstations according to EN 12464-1Yes
Width120.00 mm
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALIYes
Dimming DMXNo
Dimming DSINo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeNo
Dimming phase controlNo
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableNo
Direct/indirect components can be controlled separatelyNo
Color temperature4000K
Color rendering index CRI80-89
VersionWithout
Suitable for light strip configurationNo
Suitable for emergency lightingNo
Housing colorWhite
Glow wire test according to IEC 60695-2-11650 °C - 30 s
Height/Depth40.00 mm
Power factor0.90
Luminaire with limited surface temperature D-markNo
LampsLED not replaceable
Light emissionDirect/indirect
Light colorWhite
Light distributorFocus lens
Light distributionSymmetrical
Length1199.00 mm
Max. system performance42.00W
With operating deviceYes
With light sourceYes
Nominal voltage220 to 240 V
Without dimming functionNo
Pendulum length1500 mm
Number of poles4
ReflectorWithout
Impact resistanceIK06
IP protection)IP20
Protection classI
Voltage typeAC
Housing materialAluminum
