LEDVANCE Osram LN UO 1200 33W/3000K LINEAR ULTRA OUTPUT 1200 33W 3000K

LEDVANCE Osram LN UO 1200 33W/3000K LINEAR ULTRA OUTPUT 1200 33W 3000K

In stock

SKU: 516523

Price on request

€58.65

€0

Overview

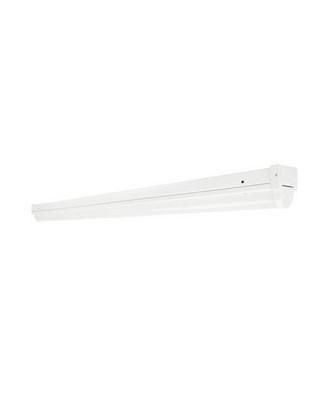

Surface-mounted luminaire with high luminous flux. Product features: Versions with luminous flux between 3500 and 7100 lm available. Very high system efficiency: up to 125 lm/W. Robust metal housing and PC diffuser. Wiring on the back of the luminaire. Through-wiring possible. Product benefits: Replacement of conventional T8 luminaires with up to 7100 lm. Up to 60% energy savings (compared to luminaires that use fluorescent lamps). Robust housing with IK08. Optional reflector accessories and numerous wiring options for flexible applications. 5-year guarantee. Areas of application: Direct replacement for luminaires with fluorescent lamps. Indoor applications. Industrial and commercial halls. Public spaces. Corridors, stairwells, basements. Garages. Technical equipment: Reflector for high ceilings or asymmetric light distribution available (1500 mm version). Including mounting screws and dowels. Internal threaded rod and screw for housing locking included.

Property	Value
Max. System power:	34 W
Nominal voltage:	220 to 240 V
Rated luminous flux according to IEC 62722-2-1:	4400 lm
Color temperature:	3000 K
With control gear:	yes
With light source:	yes
Width:	62 mm
Length:	1168 mm
Socket:	without
Housing color:	white
Suitable for number of lamps:	1
Operating device:	EVG
Protection type (IP):	IP20
Protection class:	I
Lamp:	LED not replaceable
Electrical connection with plug-in system:	no
With switch:	no
Material:	steel
Luminaire with limited surface temperature 'D-mark':	no
Covering of the lamp with thermal insulation material possible:	no
Suitable for emergency lighting:	no
Voltage type:	AC
Color rendering index CRI:	80-89
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (integrated in device):	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	yes
Light distributor:	Diffuser lens/optics/panel
Rated service life L70/B50 at 25 °C:	50000 h
Glow wire test according to IEC 60695-2-11:	850 °C - 30 s
With motion detector:	no
Power factor:	0.90
Height/depth:	74 mm
Wiring type:	suitable for through wiring
Number of poles:	2
Connection type:	Plug terminal

Characteristics

With switchNo

Manufacturer

HAN4058075122147

GTIN4058075122147

Covering the luminaire with thermal insulation material possibleNo

Connection typePlug-in terminal

Type of wiringSuitable for through wiring

Rated lifetime L70/B50 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-14400lm

Operating deviceElectronic ballast

Width62 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Electrical connection with plug-in systemNo

Color temperature3000K

Color rendering index CRI80-89

VersionWithout

Suitable for number of lamps1

Suitable for emergency lightingNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11850 °C - 30 s

Height/Depth74 mm

Power factor0.90

Luminaire with limited surface temperature D-markNo

LampsLED not replaceable

Light distributorDiffuser lens/optics/panel

Length1168 mm

Max. system performance34W

With operating deviceYes

With motion detectorNo

With light sourceYes

Nominal voltage220 to 240 V

Without dimming functionYes

Number of poles2

IP protection)IP20

Protection classI

Voltage typeAC

MaterialSteel
