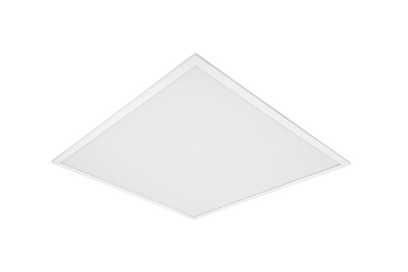

LEDVANCE Osram PANEL 600 36W/4000K PANEL 600 36W/4000K OP IP54

LEDVANCE Osram PANEL 600 36W/4000K PANEL 600 36W/4000K OP IP54

In stock

SKU: 516106

Price on request

€146.08

€0

Overview

Square recessed luminaire with IP54 protection and high luminous flux, 600 x 600 mm. Product features: Protection class: IP54. Luminous flux: up to 4,320 lm. High luminous efficacy: up to 120 lm/W. Service life (L80/B50): up to 60,000 h (at 25 C). Aluminum housing, PMMA diffuser. Product advantages: Suitable for use in dusty and damp environments thanks to high protection class. High luminous flux reduces the number of luminaires per installation. Up to 50% energy savings (compared to luminaires that use fluorescent lamps). Low-flicker light thanks to special electronic ballast. 5-year guarantee. Versions with DALI electronic ballast available. Areas of application: Direct replacement for luminaires with fluorescent lamps. Hospitals. Laboratories. Suitable for ceiling recessed systems with a grid dimension of 600 x 600 mm. Kitchens, work areas. Technical equipment: Accessories available for various installation options. External ballast included.

Property	Value
Max. System power:	36.00 W
Rated luminous flux according to IEC 62722-2-1:	4320 lm
Length:	595.00 mm
Width:	595.00 mm
Height/depth:	12.60 mm
Protection rating (IP):	IP54
Protection class:	II
Luminaire with limited surface temperature 'D-mark':	no
Nominal voltage:	220 to 240 V
Housing color:	white
Housing material:	aluminum
Color temperature:	4000 K
Impact resistance:	IK03
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Voltage type:	AC
With motion detector:	no
With light source:	yes
Light source:	LED not replaceable
Rated ambient temperature according to IEC62722-2-1:	-10 to 45 °C
Connection type:	Screw terminal
With control gear:	yes
Light distributor:	Diffuser lens/optics/panel
Installation height/depth:	50.0 mm
Without dimming function:	yes
Installation width:	575 mm
Light emission:	direct
With light sensor:	no
Operating device:	EVG
Suitable for recessed mounting:	yes
Light colour:	white
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for light strip configuration:	no
Suitable for pendant suspension:	yes
Suitable for surface mounting:	yes
Suitable for emergency lighting:	yes
Installation length:	575 mm
Version of the Grid:	matt
Covering the light with thermal insulation material possible:	no
Dimming DMX:	no
Dimming DSI:	no
With air slots:	no
Dimming LineSwitch:	no
Dimming Potentiometer (integrated in the device):	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
DALI dimming:	no
Mains voltage modulation dimming:	no
Trailing edge dimming:	no
Phase control dimming:	no
Programmable dimming:	no
RF dimming:	no
Sine wave reduction dimming:	no
Touch and dim dimming:	no
Zigbee dimming:	no
Dimming with push button:	no
Rated service life L70/B50 at 25 °C:	80000 h
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
Luminaire luminous efficacy:	120 lm/W
Power factor:	0.90
Type of wiring:	Termination
Number of poles:	2

Characteristics

Manufacturer

HAN4058075149502

GTIN4058075149502

Covering the luminaire with thermal insulation material possibleNo

Connection typeScrew terminal

Type of wiringDiploma

Execution of the gridFrosted

Rated lifetime L70/B50 at 25 °C80000 hours

Rated luminous flux according to IEC 62722-2-14320lm

Rated ambient temperature according to IEC62722-2-1-10 to 45 °C

Operating deviceElectronic ballast

Suitable for computer workstations according to EN 12464-1No

Width595.00 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation width575 mm

Installation height/depth50.0 mm

Installation length575 mm

Color temperature4000K

Color rendering index CRI80-89

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for light strip configurationNo

Suitable for emergency lightingYes

Suitable for pendulum suspensionYes

Housing colorWhite

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth12.60 mm

Power factor0.90

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy120lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Light distributorDiffuser lens/optics/panel

Length595.00 mm

Max. system performance36.00W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage220 to 240 V

Without dimming functionYes

Number of poles2

Impact resistanceIK03

IP protection)IP54

Protection classII

Voltage typeAC

Housing materialAluminum

LEDVANCE Osram PANEL 600 36W/4000K PANEL 600 36W/4000K OP IP54

Price on request

€146.08

€0
