LEDVANCE Osram PANEL 625 DALI 6W PANEL 625 DALI 36W/3000K OP

In stock
SKU: 516095
€157.86
Into a basketIn the basketGo

Overview

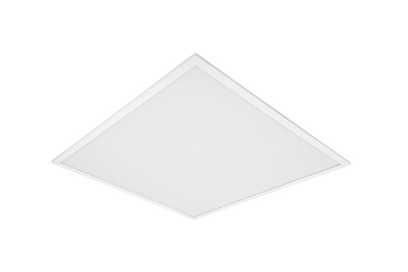

Square recessed luminaire with high luminous flux and DALI ballast, 625 x 625 mm. Product features: Luminous flux: up to 4,320 lm. High luminous efficacy: up to 120 lm/W. Service life (L80/B50): up to 60,000 h (at 25 °C). Aluminium housing, polystyrene diffuser. Product benefits: High luminous flux reduces the number of luminaires per installation. Light guide plate with microstructure and non-yellowing material for a long service life. Low-flicker light thanks to special electronic ballast. Up to 50% energy savings (compared to luminaires that use fluorescent lamps). 5-year guarantee. Areas of application: Direct replacement for luminaires with fluorescent lamps. Corridors. Offices. Conference rooms. Reception areas. Entrance areas. Suitable for ceiling recessed systems with a grid dimension of 625 x 625 mm. Technical equipment: Accessories available for various installation options. Safety cable for lights included. External ballast included.

G
Dimming LineSwitch:no
With air slots:no
Dimming potentiometer (integrated in device):no
Dimming GPRS:no
LED nominal current at constant current:190 mA
Dimming 0-10 V:no
Dimming 1-10 V:no
Dimming manufacturer-specific:no
Dimming DALI:yes
Dimming mains voltage modulation:no
Dimming trailing edge:no
Dimming leading edge:no
Dimming programmable:no
Dimming RF:no
Dimming Sine Wave Reduction:no
Dimming Touch and Dim:no
Dimming Zigbee:no
Dimming with push button:no
Dimming dependent on Operating device:yes
Without dimming function:no
Light distributor:Diffuser lens/optics/panel
Rated service life L70/B10 at 25 °C:80000 h
Rated service life L70/B50 at 25 °C:80000 h
Rated service life L80/B10 at 25 °C:60000 h
Rated service life L80/B50 at 25 °C:60000 h
Rated service life L90/B10 at 25 °C:35000 h
Rated service life L90/B50 at 25 °C:35000 h
Suitable for lamp power:36.00 W
Luminaire luminous efficacy:120 lm/W
Power factor:0.90
Wiring type:Termination
Number of poles:5

Characteristics

Rated service life L90/B10 at 25 °C35000 h
Rated service life L70/B10 at 25 °C80000 h
Rated service life L80/B50 at 25 °C60000 h
ManufacturerLEDVANCE Osram
HAN4058075113329
GTIN4058075113329
Type of wiringDiploma
Rated lifetime L70/B50 at 25 °C80000 hours
Rated lifetime L80/B10 at 25 °C60000 hours
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALIYes
Dimming GPRSNo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeNo
Dimming phase controlNo
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming depends on the control gearYes
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableNo
Suitable for lamp power36.00W
LED nominal current at constant current190mA
Power factor0.90
Luminaire luminous efficacy120lm/W
Light distributorDiffuser lens/optics/panel
With air slotsNo
Without dimming functionNo
Number of poles5
LEDVANCE Osram PANEL 625 DALI 6W PANEL 625 DALI 36W/3000K OP
