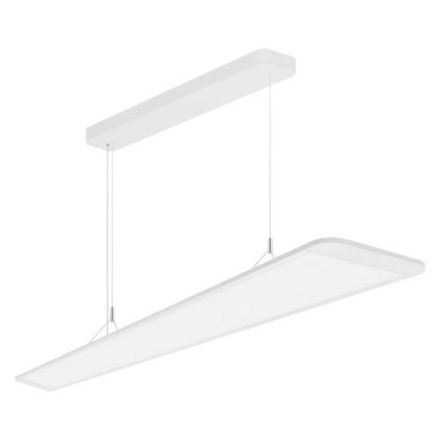

LEDVANCE Osram PANEL D/I 1200 PANEL D/I 1200 36W/4000K UGR19

LEDVANCE Osram PANEL D/I 1200 PANEL D/I 1200 36W/4000K UGR19

In stock

SKU: 516762

Price on request

€247.47

€0

Overview

Pendant luminaires with edge feed for direct and indirect lighting, strong glare control, 1200 mm. Product features: Rectangular (1200 mm x 300 mm) stand-alone luminaires with direct (70%) and indirect (30%) light emission. Driver integrated in the remote driver box. UGR 19 according to EN12464-1. High luminous efficacy: up to 110 lm/W. Service life (L70/B50): 80,000 h (at 25 °C). Follows the uniform design language of LEDVANCE (SCALE Design). Very slim aluminum housing. Luminaire versions with IoT-capable DALI-2 driver or Zigbee 3.0 technology available. Product advantages: Pendant luminaires with edge lighting for direct (70%) and indirect lighting (30%). Attractive and functional design for office applications. Good glare control (UGR 19). Very homogeneous light. Low maintenance and low operating costs. External driver for increased flexibility. Special light control design for low glare lighting. Easy and quick installation. Low-flicker light thanks to special electronic ballast. 5-year guarantee. Areas of application: Efficient replacement for traditional T8 and T5 light bars. Offices. Meeting rooms. Conference rooms. Reception areas, entrance areas. Technical equipment: Suspension set included.

Property	Value
Max. System power:	36.00 W
Rated luminous flux according to IEC 62722-2-1:	4000 lm
Length:	1200.00 mm
Width:	300.00 mm
Height/depth:	16.00 mm
Protection class (IP):	IP20
Protection class:	I
Luminaire with limited surface temperature 'D-mark':	no
Nominal voltage:	220 to 240 V
Housing color:	white
Housing material:	aluminum
Color temperature:	4000 K
Impact resistance:	IK03
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Voltage type:	AC
With motion detector:	no
With light source:	yes
Light source:	LED not replaceable
Rated ambient temperature according to IEC62722-2-1:	-20 to 45 °C
Connection type:	Plug-in terminal
With operating device:	yes
Light distributor:	Diffuser lens/optics/panel
Without dimming function:	yes
Light emission:	direct/indirect
With light sensor:	no
Operating device:	EVG
Suitable for recessed mounting:	no
Light colour:	white
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for strip light configuration:	no
Suitable for pendant suspension:	yes
Suitable for surface mounting:	yes
Suitable for emergency lighting:	no
Installation length:	1175 mm
Design of the grid:	matt
Covering of the luminaire with thermal insulation material possible:	no
Dimming DMX:	no
Dimming DSI:	no
With air slots:	no
Dimming LineSwitch:	no
Dimming potentiometer (device-integrated):	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming Mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Rated service life L70/B50 at 25 °C:	80000 h
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
Luminaire luminous efficacy:	110 lm/W
Power factor:	0.90
Wiring type:	Termination
Number of poles:	2

Characteristics

Manufacturer

HAN4058075144620

GTIN4058075144620

Covering the luminaire with thermal insulation material possibleNo

Connection typePlug-in terminal

Type of wiringDiploma

Execution of the gridFrosted

Rated lifetime L70/B50 at 25 °C80000 hours

Rated luminous flux according to IEC 62722-2-14000lm

Rated ambient temperature according to IEC62722-2-1-20 to 45 °C

Operating deviceElectronic ballast

Suitable for computer workstations according to EN 12464-1No

Width300.00 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation length1175 mm

Color temperature4000K

Color rendering index CRI80-89

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionYes

Housing colorWhite

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth16.00 mm

Power factor0.90

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy110lm/W

LampsLED not replaceable

Light emissionDirect/indirect

Light colorWhite

Light distributorDiffuser lens/optics/panel

Length1200.00 mm

Max. system performance36.00W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage220 to 240 V

Without dimming functionYes

Number of poles2

Impact resistanceIK03

IP protection)IP20

Protection classI

Voltage typeAC

Housing materialAluminum
