LEDVANCE Osram PANEL DALI 625 PANEL 625 IP54 36W 3000K OP WT

LEDVANCE Osram PANEL DALI 625 PANEL 625 IP54 36W 3000K OP WT

In stock

SKU: 516724

Price on request

€168.26

€0

Overview

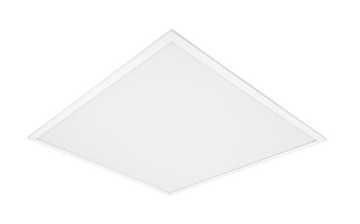

Square recessed luminaire with IP54 protection and high luminous flux, 625 x 625 mm. Product features: Protection class: IP54. Luminous flux: up to 4,320 lm. High luminous efficacy: up to 120 lm/W. Service life (L80/B50): up to 60,000 h (at 25 C). Aluminum housing, PMMA diffuser. Product advantages: Suitable for use in dusty and damp environments thanks to high protection class. High luminous flux reduces the number of luminaires per installation. Up to 50% energy savings (compared to luminaires that use fluorescent lamps). Low-flicker light thanks to special electronic ballast. 5-year guarantee. Versions with DALI electronic ballast available. Areas of application: Direct replacement for luminaires with fluorescent lamps. Hospitals. Laboratories. Suitable for ceiling recessed systems with a grid dimension of 625 x 625 mm. Kitchens, work areas. Technical equipment: Accessories available for various installation options. External ballast included.

Property	Value
Max. System power:	36.00 W
Rated luminous flux according to IEC 62722-2-1:	4320 lm
Length:	620.00 mm
Width:	620.00 mm
Height/depth:	50.0 mm
Protection class (IP):	IP54
Protection class:	II
Nominal voltage:	220 to 240 V
Housing color:	white
Material of Housing:	Aluminum
Color temperature:	3000 K
Impact resistance:	IK03
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Rated service life L80/B10 at 25 °C:	60000 h
Suitable for wall mounting:	yes
Voltage type:	AC
With motion detector:	no
With light source:	yes
Light source:	LED not replaceable
Rated ambient temperature according to IEC62722-2-1:	-10 to 40 °C
Socket:	other
Connection type:	plug-in terminal
With control gear:	yes
Light distributor:	diffuser lens/optics/panel
Installation height/depth:	50.0 mm
Without dimming function:	no
Installation width:	600.0 mm
Light emission:	direct
With light sensor:	no
Operating device:	EVG
Suitable for recessed mounting:	yes
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for light strip configuration:	no
Suitable for pendant suspension:	yes
Suitable for surface mounting:	yes
Suitable for emergency lighting:	yes
Installation length:	600.0 mm
Grid design:	matt
Covering of the light with thermal insulation material possible:	no
DMX dimming:	no
DSI dimming:	no
With air slots:	no
LineSwitch dimming:	no
Potentiometer dimming (integrated in the device):	no
0-10 V dimming:	no
Dimming GPRS:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	yes
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Dimming depending on operating device:	yes
Rated service life L70/B50 at 25 °C:	80000 h
Rated service life L90/B10 at 25 °C:	35000 h
Luminaire luminous efficacy:	120 lm/W
Type of Wiring:	Termination
Number of poles:	5

Characteristics

Rated service life L90/B10 at 25 °C35000 h

Manufacturer

HAN4058075217768

GTIN4058075217768

Covering the luminaire with thermal insulation material possibleNo

Connection typePlug-in terminal

Type of wiringDiploma

Execution of the gridFrosted

Rated lifetime L70/B50 at 25 °C80000 hours

Rated lifetime L80/B10 at 25 °C60000 hours

Rated luminous flux according to IEC 62722-2-14320lm

Rated ambient temperature according to IEC62722-2-1-10 to 40 °C

Operating deviceElectronic ballast

Suitable for computer workstations according to EN 12464-1No

Width620.00 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALIYes

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearYes

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation width600.0 mm

Installation height/depth50.0 mm

Installation length600.0 mm

Color temperature3000K

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for light strip configurationNo

Suitable for emergency lightingYes

Suitable for pendulum suspensionYes

Suitable for wall mountingYes

Housing colorWhite

Height/Depth50.0 mm

Luminaire luminous efficacy120lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Light distributorDiffuser lens/optics/panel

Length620.00 mm

Max. system performance36.00W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage220 to 240 V

Without dimming functionNo

Number of poles5

Impact resistanceIK03

IP protection)IP54

Protection classII

Voltage typeAC

Housing materialAluminum
