LEDVANCE Osram PL PFM DALI 600 33W PL PFM DALI 600 33W/3000K UGR19 3300lm

LEDVANCE Osram PL PFM DALI 600 33W PL PFM DALI 600 33W/3000K UGR19 3300lm

In stock

SKU: 516749

Price on request

€178.39

€0

Overview

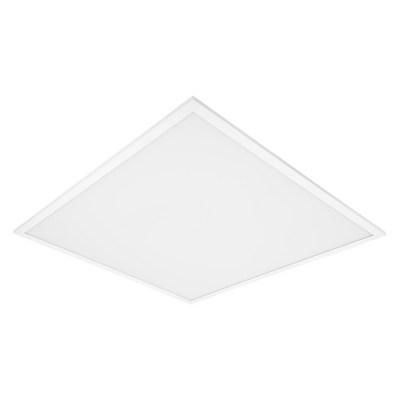

Square recessed luminaire with DALI ballast and strong glare control, 600 x 600 mm. Product features: High luminous efficacy: up to 110 lm/W. Service life (L80/B10): up to 60,000 hours (at 25 °C). Aluminium housing, polystyrene diffuser. Product benefits: Good glare control (UGR <19). Up to 50% energy savings (compared to luminaires that use fluorescent lamps). Extended functions thanks to external DALI ballast. Light guide plate with microstructure and non-yellowing material for a long service life. Simple and quick installation. Low-flicker light thanks to special electronic ballast. 5-year guarantee. Areas of application: Direct replacement for luminaires with fluorescent lamps. Corridors. Offices. Conference rooms. Reception areas. Entrance areas. Elevators. Suitable for ceiling installation systems with a grid size of 600 x 600 mm. Technical equipment: Accessories for various installation options available. External ballast included.

Property	Value
Length:	595.0 mm
Max. System power:	33.00 W
Color temperature:	3000 K
Housing color:	white
Beam angle:	extremely wide beam >,80°
Height/depth:	9.0 mm
Installation width:	591.0 mm
Light emission:	direct
Light source:	LED not replaceable
With light sensor:	no
Protection class (IP):	IP20
Protection class:	II
Width:	595.0 mm
Installation height/depth:	50 mm
With motion detector:	no
Operating device:	EVG
Suitable for ceiling mounting:	yes
Suitable for wall mounting:	yes
Suitable for recessed mounting:	yes
Suitable for strip light configuration:	no
Suitable for pendant suspension:	yes
Suitable for surface mounting:	no
Suitable for emergency lighting:	yes
Installation length:	591.0 mm
Light color:	white
Voltage type:	AC
With control gear:	yes
Housing material:	aluminum
Cover material:	opal plastic
Nominal voltage:	240 V
Covering of the luminaire with thermal insulation material possible:	no
Suitable for computer workstations according to EN 12464-1:	yes
With light source:	yes
Rated ambient temperature according to IEC62722-2-1:	+45 °C
Color rendering index CRI:	80-89
Impact resistance:	IK03
DMX dimming:	no
Luminaire with limited surface temperature 'D-mark':	no
DSI dimming:	no
Energy efficiency class of the permanently installed Lamp:	-
Dimming LineSwitch:	no
With air slots:	no
Dimming potentiometer (integrated in device):	no
Dimming GPRS:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	yes
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Dimming dependent on operating device:	yes
Without Dimming function:	no
Light distributor:	diffuser lens/optics/panel
Rated service life L70/B10 at 25 °C:	80000 h
Rated service life L70/B50 at 25 °C:	80000 h
Rated service life L80/B10 at 25 °C:	60000 h
Rated service life L80/B50 at 25 °C:	60000 h
Rated service life L90/B10 at 25 °C:	35000 h
Rated service life L90/B50 at 25 °C:	35000 h
Suitable for lamp power:	33.00 W
Luminaire efficacy:	95 lm/W
Power factor:	0.95
Wiring type:	Termination
Number of poles:	5

Characteristics

Energy efficiency class of the permanently installed light source-

Rated service life L90/B10 at 25 °C35000 h

Rated service life L70/B10 at 25 °C80000 h

Rated service life L80/B50 at 25 °C60000 h

Manufacturer

HAN4058075225435

GTIN4058075225435

Covering the luminaire with thermal insulation material possibleNo

Type of wiringDiploma

Beam angleExtremely wide beam >80°

Rated lifetime L70/B50 at 25 °C80000 hours

Rated lifetime L80/B10 at 25 °C60000 hours

Rated ambient temperature according to IEC62722-2-1+45°C

Operating deviceElectronic ballast

Suitable for computer workstations according to EN 12464-1Yes

Width595.0 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALIYes

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearYes

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation width591.0 mm

Installation height/depth50 mm

Installation length591.0 mm

Color temperature3000K

Color rendering index CRI80-89

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for lamp power33.00W

Suitable for light strip configurationNo

Suitable for emergency lightingYes

Suitable for pendulum suspensionYes

Suitable for wall mountingYes

Housing colorWhite

Height/Depth9.0 mm

Power factor0.95

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy95lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Light distributorDiffuser lens/optics/panel

Length595.0 mm

Max. system performance33.00W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage240V

Without dimming functionNo

Number of poles5

Impact resistanceIK03

Protection classII

Voltage typeAC

Cover materialPlastic opal

Housing materialAluminum
