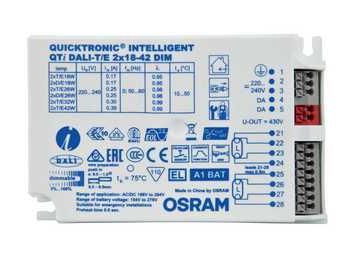

Product family advantages: System+ guarantee available. Easy luminaire integration thanks to the same device size as DALI GI EVG. Control via DALI interface. Compliance with DALI Version 1 and IEC 60929. Control input overvoltage-proof and reverse polarity protected (OSRAM EVG). Manual dimming operation without control unit with standard installation button. Including memory function (double click) and soft start. Product family features: Corridor function for direct connection of the EVG to commercially available motion detectors. Corridor function with preset lighting program. Touch DIM© function for free parameterization of the light value and switch-on time. Fit for SMART GRID for feedback on the mains power consumed and lamp operating hours. Fit for Emergency function for automatic detection of emergency lighting operation by EVG. Very low standby power consumption: < 0.2 W (A1 BAT). Service life: > 100,000 h (at T = 65 °C at Tc). Very high switching strength: up to 300,000. Dimming range: 1100% (3100% with compact fluorescent lamp). POWER2LAMP function for optimal adaptation of the ECG power to the lamp during the lamp's service life. Mains frequency: 0 Hz, 5060 Hz, pulsating AC. Areas of application: Suitable for use in emergency lighting systems in accordance with EN 50172 / DIN0108-100. Installation in emergency lighting systems in accordance with IEC 61347-2-3, Appendix J. Open-plan offices, corridors or storage rooms. Public buildings. Suitable for luminaires of protection class I.
