LEDVANCE Osram SP SQUARE DK ADJ 8W SP SQUARE DK ADJ 8W/3000K FL WT

LEDVANCE Osram SP SQUARE DK ADJ 8W SP SQUARE DK ADJ 8W/3000K FL WT

In stock

SKU: 515721

Price on request

€37.17

€0

Overview

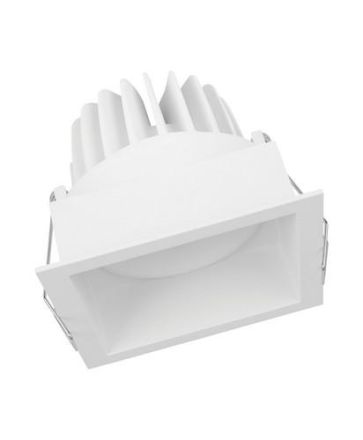

Recessed spotlight, adjustable, square. Product features: Adjustable tilt angle: +/- 20°. Initial color consistency: 4 SDCM (threshold unit). Lens material: PMMA. Product benefits: Cut-off angle for comfortable interior lighting. High luminous efficacy. Die-cast aluminum housing for improved heat dissipation. Energy savings of up to 90% compared to halogen lamp spotlights. External driver for extended flexibility (compatible with selected DALI drivers). Easy replacement of the external driver thanks to the bayonet connector. Design matches the LEDVANCE spot, down and tracklight family. 5-year guarantee. Areas of application: Replacement for halogen lamp spotlights. General accent lighting. Shops, boutiques. Hotel rooms. Bars, restaurants. Galleries, museums. Living rooms. Technical equipment: Driver included.

Property	Value
Max. System power:	8 W
Rated luminous flux according to IEC 62722-2-1:	650 lm
Color temperature:	3000 K
Nominal voltage:	240 V
Protection class (IP):	IP20
With control gear:	yes
Beam angle:	medium beam 21-40°
Housing material:	aluminum
With light source:	yes
Housing color:	white
Installation height/depth:	90 mm
Length:	90.0 mm
Width:	90.0 mm
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Height/depth:	72.0 mm
Protection class:	II
Light distribution:	symmetrical
Operating device:	LED operating device, current-controlled
Impact resistance:	IK03
Light source:	LED not replaceable
Luminaire with limited surface temperature 'D-mark':	no
With motion detector:	no
Reflector:	without
Installation width:	83 mm
Installation length:	83 mm
Luminous flux:	650 lm
Cover material:	Structured plastic
Covering of the lamp with thermal insulation material possible:	no
Voltage type:	AC
Light color:	white
Suitable for wall mounting:	no
Suitable for track mounting:	no
Adjustability:	pivotable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for platform/floor mounting:	no
Suitable for truss mounting:	no
With light sensor:	no
Suitable for Surface mounting:	no
Suitable for recessed mounting:	yes
Suitable for cable system:	no
Surface:	powder-coated
Brushed surface:	no
LED nominal current at constant current:	65 mA
Dimming depending on operating device:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (device-integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	yes
Light distributor:	Focus lens
Light emission:	direct
Energy efficiency class of the built-in light source:	A++, A+, A (LED)
Total harmonic distortion (THD):	19
Rated ambient temperature according to IEC62722-2-1:	+40 °C
Lamp luminous efficacy:	90 lm/W
Wiring type:	Termination
Power factor:	0.5
Number of poles:	2
Connection type:	other
Luminous efficacy:	90 lm/W
Suitable for computer workstations according to EN 12464-1:	no
Photobiological safety according to EN 62471:	RG0
Colour consistency (McAdam ellipse):	SDCM4

Characteristics

Energy efficiency class of the permanently installed light sourceA++, A+, A (LED)

Manufacturer

HAN4058075114043

GTIN4058075114043

Covering the luminaire with thermal insulation material possibleNo

Connection typeOther

Type of wiringDiploma

Beam angleMedium beam 21-40°

Rated luminous flux according to IEC 62722-2-1650lm

Rated ambient temperature according to IEC62722-2-1+40°C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Width90.0 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation width83 mm

Installation height/depth90 mm

Installation length83 mm

Color temperature3000K

Color rendering index CRI80-89

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for clamp mountingNo

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Suitable for wall mountingNo

Housing colorWhite

Height/Depth72.0 mm

LED nominal current at constant current65mA

Lamp luminous efficacy90lm/W

Power factor0.5

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy90lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux650lm

Light distributorFocus lens

Light distributionSymmetrical

Length90.0 mm

Max. system performance8W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage240V

SurfacePowder coated

Brushed surfaceNo

Without dimming functionYes

Photobiological safety according to EN 62471RG0

Number of poles2

ReflectorWithout

Impact resistanceIK03

Protection classII

Voltage typeAC

AdjustabilitySwiveling

Cover materialPlastic structured

Housing materialAluminum
