LEDVANCE Osram SPOTFP LED FIX 8 SPOTFP LED FIX 8W/4000KWTDIMIP65

LEDVANCE Osram SPOTFP LED FIX 8 SPOTFP LED FIX 8W/4000KWTDIMIP65

In stock

SKU: 516248

Price on request

€33.25

€0

Overview

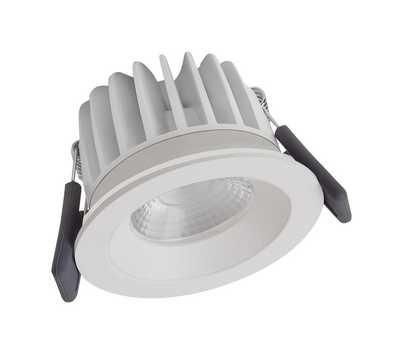

Recessed spotlight, round, fire-resistant, dimmable. Product features: Fire protection application (up to 90 minutes, tested with EN 1365-2:2014 Fire resistance tests for structural components - Part 2: Ceilings and roofs). Outdoor use and fire protection applications (up to 90 minutes, BS476-20:1987 and BS476-21:1987). Compatible with standard ceiling recesses of 68 mm. Initial colour consistency: 4 SDCM (threshold unit). Protection class, front: IP65. Product benefits: High luminous efficacy. Matches the design of the LEDVANCE DOWNLIGHT luminaire family. Energy savings of up to 90% compared to halogen lamp spotlights. Functional and minimalist design. Easy installation with quick connection. External driver for extended flexibility (compatible with selected dimmable drivers). Design for extra high IP protection. 5 year guarantee. Areas of application: Replacement for halogen lamp spotlights. Hotel rooms. Bars, restaurants. Bathrooms. Accent lighting. Galleries, museums. General lighting.

Property	Value
Max. System power:	8.00 W
Rated luminous flux according to IEC 62722-2-1:	670 lm
Housing color:	white
Housing material:	aluminum
Protection class (IP):	IP65
Outer diameter:	81.00 mm
Socket:	without
Light source:	LED not replaceable
Protection class:	II
With light source:	yes
Installation height/depth:	90 mm
With control gear:	yes
Suitable for recessed mounting:	yes
Length:	81.00 mm
Width:	81.00 mm
Height/depth:	51.00 mm
With motion detector:	no
Color temperature:	4000 K
Nominal voltage:	220 to 240 V
Beam angle:	medium beam 21-40°
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Light distribution:	symmetrical
Operating device:	LED operating device, current-controlled
Impact resistance:	IK06
Luminaire with limited surface temperature 'D-mark':	no
Reflector:	without
Installation width:	68 mm
Installation length:	68 mm
Luminous flux:	670 lm
Covering of the lamp with thermal insulation material possible:	no
Voltage type:	AC
Light color:	white
Suitable for track mounting:	no
Adjustability:	not adjustable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for pedestal/floor mounting:	no
Suitable for Traverse mounting:	no
With light sensor:	no
Suitable for surface mounting:	yes
Suitable for cable system:	no
Surface:	powder-coated
Brushed surface:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (integrated in device):	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	yes
Dimming leading edge:	yes
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	no
Light distributor:	Focus lens
Light emission:	direct
Total harmonic distortion (THD):	20
Rated service life L70/B50 at 25 °C:	50000 h
Rated ambient temperature according to IEC62722-2-1:	-20 to 45 °C
Wiring type:	Termination
Power factor:	0.90
Number of poles:	2
Luminaire luminous efficacy:	80 lm/W
Suitable for computer workstations according to EN 12464-1:	no
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
Photobiological safety according to EN 62471:	RG0
Color consistency (McAdam ellipse):	SDCM4

Characteristics

Total harmonic distortion (THD)20

Manufacturer

HAN4058075127555

GTIN4058075127555

Covering the luminaire with thermal insulation material possibleNo

Type of wiringDiploma

Beam angleMedium beam 21-40°

Outer diameter81.00 mm

Rated lifetime L70/B50 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-1670lm

Rated ambient temperature according to IEC62722-2-1-20 to 45 °C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Width81.00 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeYes

Dimming phase controlYes

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation width68 mm

Installation height/depth90 mm

Installation length68 mm

Color consistency (McAdam ellipse)SDCM4

Color temperature4000K

Color rendering index CRI80-89

VersionWithout

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for clamp mountingNo

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth51.00 mm

Power factor0.90

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy80lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux670lm

Light distributorFocus lens

Light distributionSymmetrical

Length81.00 mm

Max. system performance8.00W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage220 to 240 V

SurfacePowder coated

Brushed surfaceNo

Without dimming functionNo

Photobiological safety according to EN 62471RG0

Number of poles2

ReflectorWithout

Impact resistanceIK06

IP protection)IP65

Protection classII

Voltage typeAC

AdjustabilityNot adjustable

Housing materialAluminum
