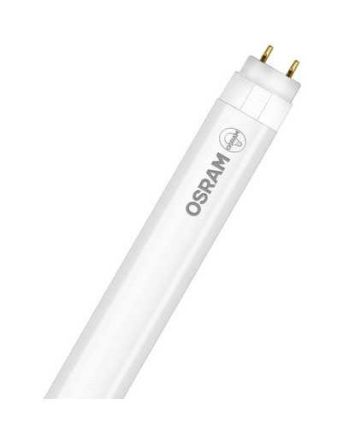

LEDVANCE Osram ST8A-1.5M 20W/8 SubstiTUBE Advanced UN 20 W/6500K 1500mm

In stock
SKU: 517060
€27.43
Into a basketIn the basketGo

Overview

LED tubes for electronic and electromagnetic ballasts. Product features: Mercury-free and RoHS compliant. Protection class: IP20. Service life: up to 50,000 hours. Compatible with conventional and many commercially available electronic ballasts (see also compatibility list) and mains voltage. Shatter protection in accordance with IEC 61549 AMD 2:2010 -810-1 4.4.1 (validated in preparation). High color consistency: 5 SDCM (threshold unit). Product advantages: Also suitable for operation at low temperatures. High luminous flux for demanding lighting tasks. Easy installation. No sagging thanks to glass technology. Areas of application: General lighting in ambient temperatures of -20.+50 °C. Supermarkets and department stores. Industry. Lighting in industrial production.

PropertyValue
Lamp wattage:20.00 W
Color temperature:6500 K
Socket:G13
Lamp shape:Tube, double-ended
Energy efficiency class:D
Nominal voltage:240 V
Voltage type:AC
Diameter:28.0 mm
Length:1500 mm
Dimmable:no
Color rendering index CRI:80-89
Protection class (IP):IP20
With remote control:no
Average nominal service life:50000 h
Nominal current:100 mA
Power factor:0.90
Luminous flux:3100 lm
Lamp luminous efficacy:155 lm/W
Filament lamp:no
Light color according to EN 12464-1:daylight white >,5300 K
Beam angle:160 °
Energy efficiency index (EEI) :0.09
Lamp designation:T8
Remote control possible:no

Characteristics

ManufacturerLEDVANCE Osram
HAN4058075137745
GTIN4058075137745
Beam angle160°
DimmableNo
Diameter28.0 mm
Energy efficiency classD
Color temperature6500K
Color rendering index CRI80-89
Remote control possibleNo
Filament lampNo
Lamp designationT8
Lamp shapeTube, double-ended
Lamp power20.00 W
Lamp luminous efficacy155lm/W
Power factor0.90
Light colour according to EN 12464-1Daylight white >5300 K
Luminous flux3100lm
Length1500 mm
With remoteNo
Average nominal life50000 hours
Nominal voltage240V
Rated current100mA
BaseG13
Voltage typeAC
