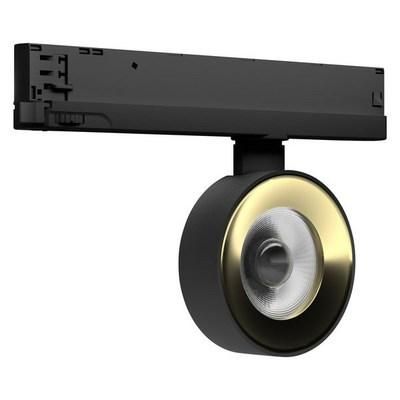

LEDVANCE Osram TR SP COM D100 TR SP COM D100 28W 930 NFL BK/GD

LEDVANCE Osram TR SP COM D100 TR SP COM D100 28W 930 NFL BK/GD

In stock

SKU: 516803

Price on request

€171.13

€0

Overview

3-phase track spotlight with ballast integrated in the track. Product features: Compact track spotlight with ballast integrated in the track. Made in Germany. Luminaire luminous efficacy: up to 85 lm/W. Rotation angle: 350°, tilt angle: 90°. Very good color rendering index Ra: 90. Color rendering index Ra9: >, 60. Initial color consistency: 3 SDCM (threshold unit). Available with beam angle: 25°, 36°. Follows the uniform design language of LEDVANCE (SCALE Design). Housing made of robust die-cast aluminum. Available in matt white (similar to RAL9010), matt black (similar to RAL9005), concrete gray (similar to RAL7042). Product advantages: Timeless design suits high-quality interiors. Included 3-phase adapter compatible with common power tracks (NORLUX, GLOBAL, NUCO, NORDIC). No distraction of attention from the illuminated objects thanks to the compact design. Low-flicker light thanks to special electronic ballast. 5-year guarantee. Areas of application: Direct replacement for luminaires that use HID lamps. Accent lighting. Fashion stores, accessories stores. Retail. Hotels, restaurants, shops.

Property	Value
Max. System power:	28.00 W
Rated luminous flux according to IEC 62722-2-1:	2280 lm
Housing color:	black
Housing material:	aluminum
Protection class (IP):	IP20
Light source:	LED not replaceable
Protection class:	II
With light source:	yes
With control gear:	yes
Suitable for recessed mounting:	no
Length:	260.0 mm
Width:	33.0 mm
Height/Depth:	160.0 mm
With motion detector:	no
Suitable for wall mounting:	no
Color temperature:	3000 K
Rated service life L80/B10 at 25 °C:	50000 h
Suitable for ceiling mounting:	no
Operating device:	LED operating device, current-controlled
Impact resistance:	IK03
Luminaire with limited surface temperature 'D-mark':	no
Reflector:	high-gloss
Luminous flux:	2280 lm
Cover material:	structured plastic
Covering of the luminaire with thermal insulation material possible:	no
Voltage type:	AC
Light color:	white
Suitable for track mounting:	yes
Adjustability:	rotatable and pivotable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	yes
Suitable for platform/floor mounting:	no
Suitable for traverse mounting:	no
With light sensor:	no
Suitable for surface mounting:	no
Suitable for cable system:	no
Surface:	powder-coated
Brushed surface:	no
LED nominal current at constant current:	120 mA
Dimming depending on operating device:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (integrated in device):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	yes
Light distributor:	Focus lens
Light emission:	direct
Energy efficiency class of the built-in light source:	A++, A+, A (LED)
Total harmonic distortion (THD):	19
Rated service life L70/B10 at 25 °C:	80000 h
Rated service life L70/B50 at 25 °C:	80000 h
Rated service life L80/B50 at 25 °C:	50000 h
Rated service life L90/B10 at 25 °C:	35000 h
Rated service life L90/B50 at 25 °C:	35000 h
Lamp luminous efficacy:	80 lm/W
Number of poles:	2
Luminaire luminous efficacy:	80 lm/W
Suitable for computer workstations in accordance with EN 12464-1:	no
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
Colour consistency (McAdam ellipse):	SDCM3

Characteristics

Energy efficiency class of the permanently installed light sourceA++, A+, A (LED)

Total harmonic distortion (THD)19

Rated service life L90/B10 at 25 °C35000 h

Rated service life L70/B10 at 25 °C80000 h

Rated service life L80/B50 at 25 °C50000 h

Manufacturer

HAN4058075335929

GTIN4058075335929

Covering the luminaire with thermal insulation material possibleNo

Rated lifetime L70/B50 at 25 °C80000 hours

Rated lifetime L80/B10 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-12280lm

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Width33.0 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color consistency (McAdam ellipse)SDCM3

Color temperature3000K

Suitable for surface mountingNo

Suitable for ceiling mountingNo

Suitable for flush mountingNo

Suitable for clamp mountingNo

Suitable for pendulum suspensionYes

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingYes

Suitable for truss mountingNo

Suitable for wall mountingNo

Housing colorBlack

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth160.0 mm

LED nominal current at constant current120mA

Lamp luminous efficacy80lm/W

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy80lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux2280lm

Light distributorFocus lens

Length260.0 mm

Max. system performance28.00 W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

SurfacePowder coated

Brushed surfaceNo

Without dimming functionYes

Number of poles2

ReflectorHigh gloss

Impact resistanceIK03

IP protection)IP20

Protection classII

Voltage typeAC

AdjustabilityRotatable and pivotable

Cover materialPlastic structured

Housing materialAluminum
