LEDVANCE Osram TR SP COM D100 TR SP COM D100 28W 940 NFL GY/CR

In stock
SKU: 516809
€154.11
Into a basketIn the basketGo

Overview

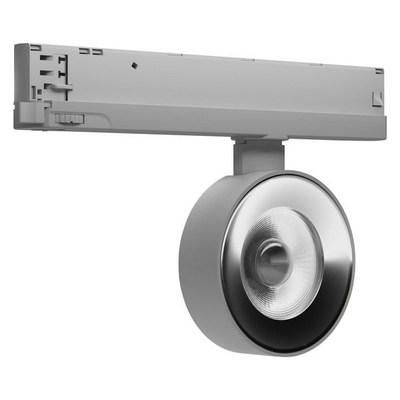

3-phase track spotlight with ballast integrated in the track. Product features: Compact track spotlight with ballast integrated in the track. Made in Germany. Luminaire luminous efficacy: up to 85 lm/W. Rotation angle: 350°, tilt angle: 90°. Very good color rendering index Ra: 90. Color rendering index Ra9: >, 60. Initial color consistency: 3 SDCM (threshold unit). Available with beam angle: 25°, 36°. Follows the uniform design language of LEDVANCE (SCALE Design). Housing made of robust die-cast aluminum. Available in matt white (similar to RAL9010), matt black (similar to RAL9005), concrete gray (similar to RAL7042). Product advantages: Timeless design suits high-quality interiors. Included 3-phase adapter compatible with common power tracks (NORLUX, GLOBAL, NUCO, NORDIC). No distraction of attention from the illuminated objects thanks to the compact design. Low-flicker light thanks to special electronic ballast. 5-year guarantee. Areas of application: Direct replacement for luminaires that use HID lamps. Accent lighting. Fashion stores, accessories stores. Retail. Hotels, restaurants, shops.

PropertyValue
Energy efficiency class of the built-in lamp:-
Length:260.0 mm
Width:33.0 mm
Height/Depth:160.0 mm
Max. System power:28.00 W
Rated luminous flux according to IEC 62722-2-1:2380 lm
With control gear:yes
Protection class (IP):IP20
Protection class:II
Nominal voltage:240 V
Voltage type:AC
Beam angle:medium beam 21-40°
Color temperature:4000 K
With light source:no
Light source:LED not replaceable
Housing material:aluminum
Cover material:structured plastic
Light distributor:Focus lens
Impact resistance:IK03
Housing color:gray
Without dimming function:yes
Rated ambient temperature according to IEC62722-2-1:+35 °C
Color rendering index CRI:90-100
Suitable for ceiling mounting:no
Suitable for wall mounting:no
Connection type:other
Light emission:direct
With light sensor:no
With motion detector:no
Operating device:LED operating device current-controlled
Suitable for recessed mounting:no
Suitable for light strip configuration:no
Suitable for pendant suspension:yes
Suitable for surface mounting:no
Suitable for emergency lighting:no
Light colour:white
Design of the grid:other
Covering of the luminaire with thermal insulation material possible:no
Suitable for computer workstations in accordance with EN 12464-1:no
DMX dimming:no
DSI dimming:no
Luminaire with limited surface temperature 'D-mark':no
With air slots:no
Dimming LineSwitch:no
Dimming potentiometer (integrated in the device):no
LED nominal current at constant current:120 mA
Dimming 0-10 V:no
Dimming GPRS:no
Dimming 1-10 V:no
Dimming manufacturer-specific:no
Dimming DALI:no
Dimming mains voltage modulation:no
Dimming trailing edge:no
Dimming leading edge:no
Dimming programmable:no
Dimming RF:no
Dimming Sine Wave Reduction:no
Dimming Touch and Dim:no
Dimming Zigbee:no
Dimming with push button:no
Dimming dependent on Operating device:no
Luminaire luminous efficacy:85 lm/W
Power factor:0.90
Number of poles:2

Characteristics

Energy efficiency class of the permanently installed light source-
ManufacturerLEDVANCE Osram
HAN4058075336049
GTIN4058075336049
Covering the luminaire with thermal insulation material possibleNo
Connection typeOther
Execution of the gridOther
Beam angleMedium beam 21-40°
Rated luminous flux according to IEC 62722-2-12380lm
Rated ambient temperature according to IEC62722-2-1+35 °C
Operating deviceLED control gear current controlled
Suitable for computer workstations according to EN 12464-1No
Width33.0 mm
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALINo
Dimming DMXNo
Dimming DSINo
Dimming GPRSNo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeNo
Dimming phase controlNo
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming depends on the control gearNo
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableNo
Color temperature4000K
Color rendering index CRI90-100
Suitable for surface mountingNo
Suitable for ceiling mountingNo
Suitable for flush mountingNo
Suitable for light strip configurationNo
Suitable for emergency lightingNo
Suitable for pendulum suspensionYes
Suitable for wall mountingNo
Housing colorGray
Height/Depth160.0 mm
LED nominal current at constant current120mA
Power factor0.90
Luminaire with limited surface temperature D-markNo
Luminaire luminous efficacy85lm/W
LampsLED not replaceable
Light emissionDirect
Light colorWhite
Light distributorFocus lens
Length260.0 mm
Max. system performance28.00 W
With operating deviceYes
With motion detectorNo
With light sourceNo
With light sensorNo
With air slotsNo
Nominal voltage240V
Without dimming functionYes
Number of poles2
Impact resistanceIK03
Protection classII
Voltage typeAC
Cover materialPlastic structured
Housing materialAluminum
